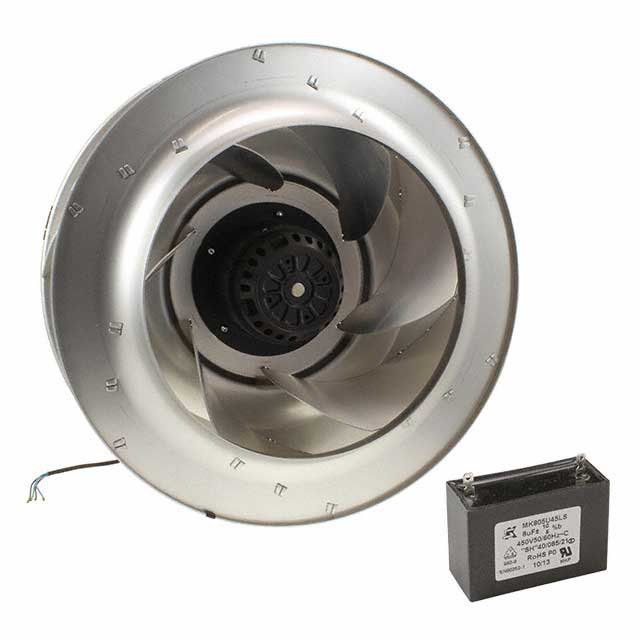

UF360AAA23-H1C4A

Active

Mechatronics Fan Group

IMPELLER 360X167MM 230VAC

Search across all available documentation for this part.

Active

Mechatronics Fan Group

IMPELLER 360X167MM 230VAC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF360AAA23-H1C4A	UF360 Series

Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	1.13 A	1.13 - 2.26 A
Fan Type	Motorized Impellers	Motorized Impellers
Features	Permanent Split Capacitor Motor	Permanent Split Capacitor Motor
Material - Blade	Aluminum	Aluminum
Material - Frame	Aluminum	Aluminum
Noise	70 dB(A)	70 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	265 W	265 - 270 W
RPM	1600 RPM	1600 RPM
Size / Dimension	Round	Round
Size / Dimension [diameter]	360 mm	360 mm
Static Pressure	548 Pa	548 Pa
Static Pressure	2.2 in H2O	2.2 in H2O
Termination	4 Wire Leads	4 Wire Leads
Voltage - Rated	230 VAC	115 - 230 VAC
Weight	11 lbs	11 lbs
Weight	5 kg	5 kg
Width	167.3 mm	167.3 mm

IMPELLER 360X167MM 115VAC

Part	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Width	RPM	Material - Frame	Termination	Weight	Weight	Power (Watts)	Material - Blade	Voltage - Rated	Noise	Approval Agency	Bearing Type	Fan Type	Size / Dimension	Size / Dimension [diameter]	Features	Static Pressure	Static Pressure
Mechatronics Fan Group UF360AAA12-H1C4A	2.26 A	-20 °C	70 °C	-20 C	70 °C	167.3 mm	1600 RPM	Aluminum	4 Wire Leads	11 lbs	5 kg	270 W	Aluminum	115 VAC	70 dB(A)	CE, cUL, TUV, UL	Ball	Motorized Impellers	Round	360 mm	Permanent Split Capacitor Motor	548 Pa	2.2 in H2O
Mechatronics Fan Group UF360AAA23-H1C4A	1.13 A	-20 °C	70 °C	-20 C	70 °C	167.3 mm	1600 RPM	Aluminum	4 Wire Leads	11 lbs	5 kg	265 W	Aluminum	230 VAC	70 dB(A)	CE, cUL, TUV, UL	Ball	Motorized Impellers	Round	360 mm	Permanent Split Capacitor Motor	548 Pa	2.2 in H2O

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers 230VAC Round - 360mm Dia Ball 1645.0 CFM (46.06m³/min) 4 Wire Leads
