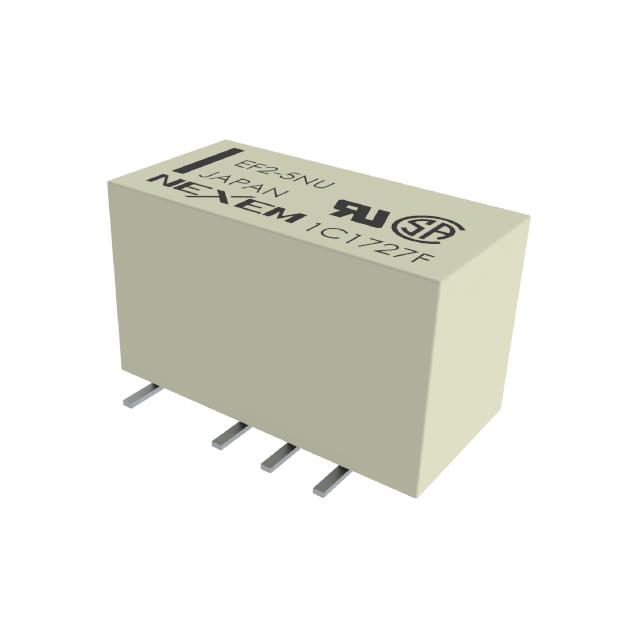

EF2-24NU-L
ActiveKEMET
SIGNAL RELAY 24VDC 1A DPDT(15X9.5X9)MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
EF2-24NU-L
ActiveKEMET
SIGNAL RELAY 24VDC 1A DPDT(15X9.5X9)MM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EF2-24NU-L |
|---|---|
| Approval Agency | CSA, TUV, UL |
| Coil Current | 2.9 mA |
| Coil Resistance | 8.229 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Gold Alloy, Silver Alloy |
| Contact Rating (Current) | 1 A |
| Load - Max Switching | 440 W, 500 VA |
| Mounting Type | Surface Mount |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 3 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 2 ms |
| Switching Voltage | 250 VAC, 220 VDC |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EF2-24 Series
General Purpose Relay DPDT (2 Form C) Surface Mount
