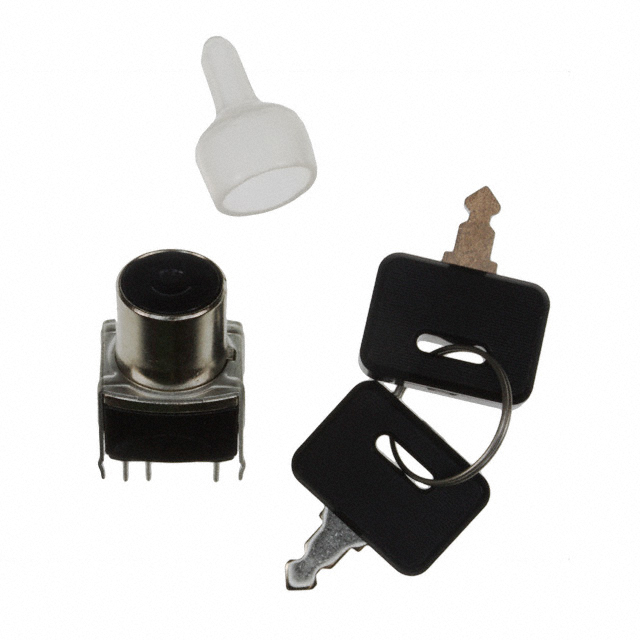

SK22BG13

Active

NKK Switches

KEYLOCK SWITCH, SEALED, ON-NONE-ON, DPDT, SK SERIES, 2 POSITION, PC PIN

Search across all available documentation for this part.

Active

NKK Switches

KEYLOCK SWITCH, SEALED, ON-NONE-ON, DPDT, SK SERIES, 2 POSITION, PC PIN

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Contact Material	Key Removable Positions	Current Rating (Amps)	Contact Finish	Termination Style	Angle of Throw	Circuit	Contact Timing	Voltage Rating - AC	Mechanical Life	Voltage Rating - DC	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Electrical Life	Number of Positions	Features
NKK Switches SK22BG30	Through Hole Right Angle	Beryllium Copper	1 only	0.4 VA	Gold	PC Pin	90 °	DPDT	Non-Shorting	28 V	30000 Steps	28 V	Flat Key	70 °C	-25 °C	On-On	10000 Cycles	2	Process Sealed
NKK Switches SK22BG13	Through Hole	Beryllium Copper	1 only	0.4 VA	Gold	PC Pin	90 °	DPDT	Non-Shorting	28 V	30000 Steps	28 V	Flat Key	70 °C	-25 °C	On-On	10000 Cycles	2	Process Sealed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 2 Position DPDT 0.4VA (AC/DC) 28 VAC 28 VDC Through Hole
