Technical Specifications
Parameters and characteristics for this part
| Specification | DEMOBCR60160VIVCTRLTOBO1 |
|---|---|
| Current - Output / Channel | 500 mA |
| Features | Dimmable |
| Outputs and Type | 1 Isolated Output |
| Supplied Contents | Board(s) |
| Utilized IC / Part | BCR601 |
| Voltage - Input [Max] | 60 V |
| Voltage - Input [Min] | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DEMOBCR60160 Series

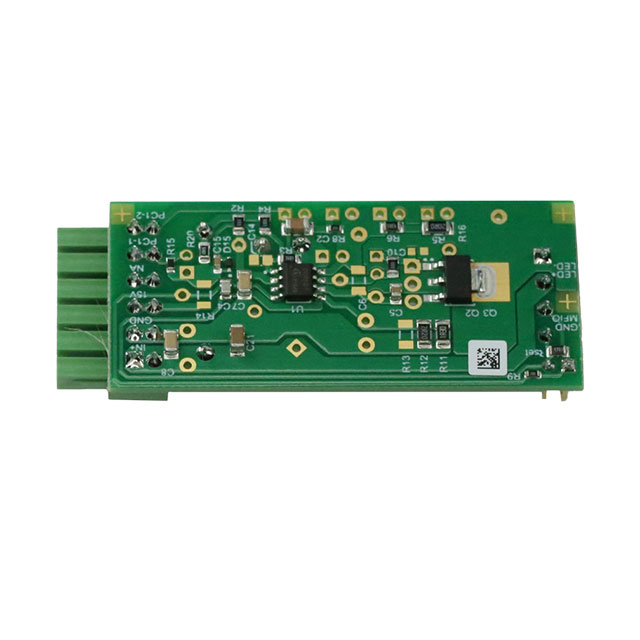

This demo board introducesBCR601, a 60Vlinear DC-DC LED controller ICfor general lighting applications. TheBCR601features a linear current regulation, various protection features and analog dimming options. Highlight feature of the BCR601 is the active headroom control (AHC) realized by a unique voltage feedback loop to primary side. This ensures not only keeping the current but also the voltage effectively under control. This board is intended for the design evaluation of cost-efficient, highly reliable, power efficient LED drivers withBCR601. The board is configured to have an output current of 700mA. A modular reference design consisting ofXDPL8219 boardfor primary side - a digitally configurable AC/DC flyback converter - together with BCR601 board is available.
