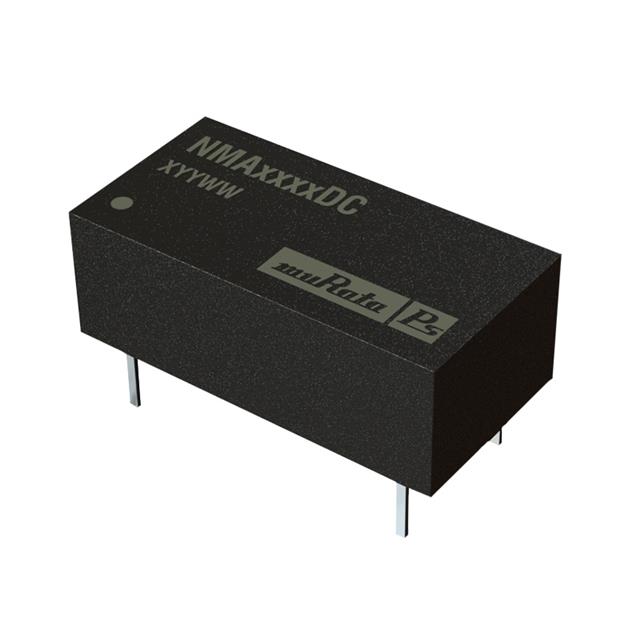

NMA0512DC

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-12V 1W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-12V 1W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NMA0512DC	NMA05 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	-	100 mA
Current - Output (Max)	-	33 - 100 mA
Current - Output (Max) [Max]	42 mA	42 mA
Current - Output (Max) [Max]	42 mA	42 mA
Efficiency	77 %	69 - 78 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	14-DIP Module, 6 Leads	7-SIP Module, 5 Leads, 14-DIP Module, 6 Leads
Size / Dimension	-	9.9 mm
Size / Dimension	-	6.1 mm
Size / Dimension	-	19.6 mm
Size / Dimension [x]	0.77 in, 19.6 mm	0.77 - 19.6 in
Size / Dimension [y]	0.39 ", 9.9 mm	0.24 - 9.9 "
Size / Dimension [z]	0.27 ", 6.9 mm	0.27 - 6.9 in
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	5.5 V	5.5 V
Voltage - Input (Min) [Min]	4.5 V	4.5 V
Voltage - Isolation	1000 V	1000 V
Voltage - Output 1	12 V	5 - 15 V
Voltage - Output 2	-12 V	-15 - -5 V

ISOLATED BOARD MOUNT DC/DC CONVERTER, SIP, THROUGH HOLE, FIXED, 5.5 V, 4.5 V, 2 ROHS COMPLIANT: YES

Part	Current - Output (Max)	Current - Output (Max)	Package / Case	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Applications	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Mounting Type	Number of Outputs	Voltage - Output 2	Type	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Murata Power Solutions Inc. NMA0505SC	100 mA	100 mA	7-SIP Module, 5 Leads	4.5 V	5.5 V	ITE (Commercial)	5 V	0.39 in	0.77 in	9.9 mm	6.1 mm	19.6 mm	0.24 "	1000 V	85 °C	-40 °C	69 %	Through Hole	2	-5 V	Isolated Module
Murata Power Solutions Inc. NMA0512SC			7-SIP Module, 5 Leads	4.5 V	5.5 V	ITE (Commercial)	12 V	0.39 in	0.77 in	9.9 mm	6.1 mm	19.6 mm	0.24 "	1000 V	85 °C	-40 °C	77 %	Through Hole	2	-12 V	Isolated Module	42 mA	42 mA
Murata Power Solutions Inc. NMA0505DC	100 mA	100 mA	14-DIP Module, 6 Leads	4.5 V	5.5 V	ITE (Commercial)	5 V	0.27 ", 6.9 mm	0.77 in, 19.6 mm				0.39 ", 9.9 mm	1000 V	85 °C	-40 °C	69 %	Through Hole	2	-5 V	Isolated Module
Murata Power Solutions Inc. NMA0512DC			14-DIP Module, 6 Leads	4.5 V	5.5 V	ITE (Commercial)	12 V	0.27 ", 6.9 mm	0.77 in, 19.6 mm				0.39 ", 9.9 mm	1000 V	85 °C	-40 °C	77 %	Through Hole	2	-12 V	Isolated Module	42 mA	42 mA
Murata Power Solutions Inc. NMA0515SC		33 mA	7-SIP Module, 5 Leads	4.5 V	5.5 V	ITE (Commercial)	15 V	0.39 in	0.77 in	9.9 mm	6.1 mm	19.6 mm	0.24 "	1000 V	85 °C	-40 °C	78 %	Through Hole	2	-15 V	Isolated Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 4.5V - 5.5V Input
