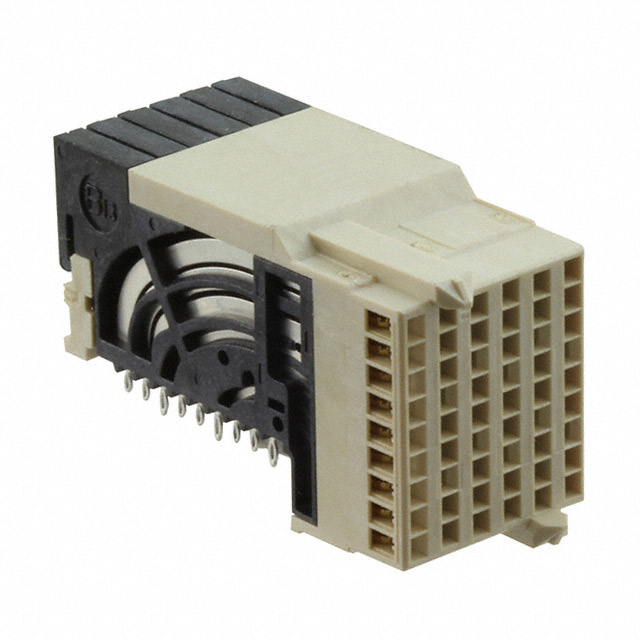

10123420-101LF

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED 54P EDGE MT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED 54P EDGE MT

Technical Specifications

Parameters and characteristics for this part

Specification	10123420-101LF

Color	Natural
Connector Style	High Speed
Connector Type	Receptacle, Female Sockets
Connector Usage	Daughtercard
Contact Finish	Gold
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	6
Number of Positions	54
Number of Positions Loaded	All
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit

Part	Color	Number of Positions	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Connector Usage	Pitch [x]	Pitch [x]	Connector Type	Mounting Type	Contact Finish	Connector Style	Number of Columns	Termination
Amphenol ICC (FCI) 10123420-101LF	Natural	54	UL94 V-0	85 °C	-55 °C	All	Daughtercard	0.079 in	2 mm	Receptacle Female Sockets	Board Edge Right Angle Through Hole	Gold	High Speed	6	Press-Fit

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

54 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Natural High Speed
