QFS-048-04.25-L-D-DP-A

Active

Samtec Inc.

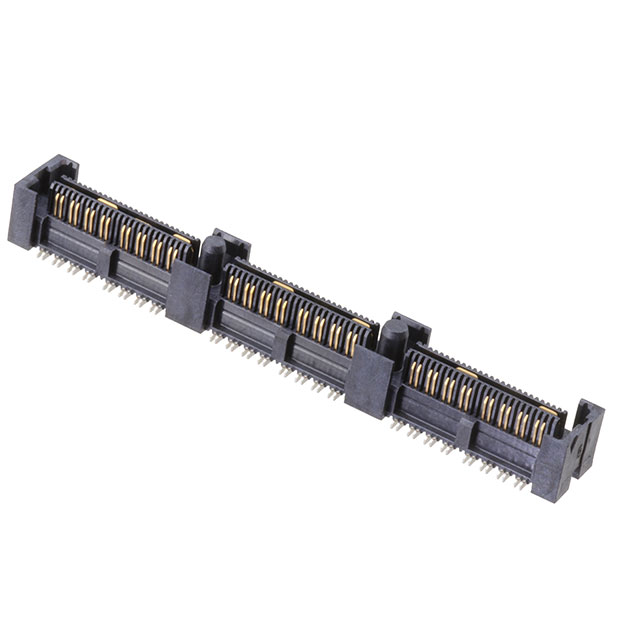

CONN MICRO HIGH SPEED SOCKET STRIP SKT 96 POS 0.635MM SOLDER ST SMD TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsQFS Datasheet QFS Product: Female connector for 15.24 mm stack height +1

QFS-048-04.25-L-D-DP-A

Active

Samtec Inc.

CONN MICRO HIGH SPEED SOCKET STRIP SKT 96 POS 0.635MM SOLDER ST SMD TRAY

Deep-Dive with AI

DocumentsQFS Datasheet QFS Product: Female connector for 15.24 mm stack height +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QFS-048-04.25-L-D-DP-A

Connector Type	Differential Pair Array, Female
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Height Above Board	7.06 mm
Height Above Board	0.278 "
Mated Stacking Heights	10 mm, 14 mm, 11 mm
Mounting Type	Surface Mount
Number of Positions	96
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

QFS-048 Series

Headers & Wire Housings 0.635 mm Q2 High-Speed Rugged Ground Plane Socket Strip

Part	Number of Positions	Features	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Number of Rows	Contact Finish	Connector Type	Mounting Type	Height Above Board [z]	Height Above Board [z]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Features	Number of Positions [custom]
Samtec Inc. QFS-048-04.25-H-D-DP-A-GP-P	96	Board Guide Ground Bus (Plane) Mating Guide Pick and Place	0.76 Ám	30 Áin	10 mm 11 mm 14 mm	0.64 mm	0.025 in	7.06 mm	0.278 "	2	Gold	Differential Pair Array Female	Surface Mount
Samtec Inc. QFS-048-01-SL-D-DP-RA	96	Ground Bus (Plane)	0.25 Ám	10 Áin		0.64 mm	0.025 in			2	Gold	Differential Pair Array Female	Surface Mount Right Angle
Samtec Inc. QFS-048-04.25-L-D-DP-RF2	100	Board Guide Ground Bus (Plane) RF Jacks (4)	0.25 Ám	10 Áin	10 mm 11 mm 14 mm	0.64 mm	0.025 in			2	Gold	Differential Pair Array Female	Surface Mount	7.45 mm	0.293 in	4
Samtec Inc. QFS-048-01-SL-D-DP-RA-PC8		Ground Bus	0.25 Ám	10 Áin		0.64 mm	0.025 in			2	Gold	Differential Pair Array Female	Surface Mount Right Angle				96	16	16
Samtec Inc. QFS-048-04.25-H-D-DP-A-P	96	Board Guide Ground Bus (Plane) Pick and Place	0.76 Ám	30 Áin	10 mm 11 mm 14 mm	0.64 mm	0.025 in	7.06 mm	0.278 "	2	Gold	Differential Pair Array Female	Surface Mount
Samtec Inc. QFS-048-04.25-L-D-DP-PC4		Ground Bus (Plane) Power Pins (8)	0.25 Ám	10 Áin	10 mm 11 mm 14 mm	0.64 mm	0.025 in	7.06 mm	0.278 "	2	Gold	Differential Pair Array Female	Surface Mount					8		96
Samtec Inc. QFS-048-04.25-L-D-DP-A-P-TR	96	Board Guide Ground Bus (Plane) Pick and Place	0.25 Ám	10 Áin	10 mm 11 mm 14 mm	0.64 mm	0.025 in	7.06 mm	0.278 "	2	Gold	Differential Pair Array Female	Surface Mount
Samtec Inc. QFS-048-04.25-H-D-DP-A-GP	96	Board Guide Ground Bus (Plane) Mating Guide	0.76 Ám	30 Áin	10 mm 11 mm 14 mm	0.64 mm	0.025 in	7.06 mm	0.278 "	2	Gold	Differential Pair Array Female	Surface Mount
Samtec Inc. QFS-048-04.25-L-D-DP	96	Ground Bus (Plane)	0.25 Ám	10 Áin	10 mm 11 mm 14 mm	0.64 mm	0.025 in	7.06 mm	0.278 "	2	Gold	Differential Pair Array Female	Surface Mount
Samtec Inc. QFS-048-04.25-L-D-DP-A	96		0.25 Ám	10 Áin	10 mm 11 mm 14 mm	0.64 mm	0.025 in	7.06 mm	0.278 "	2	Gold	Differential Pair Array Female	Surface Mount
