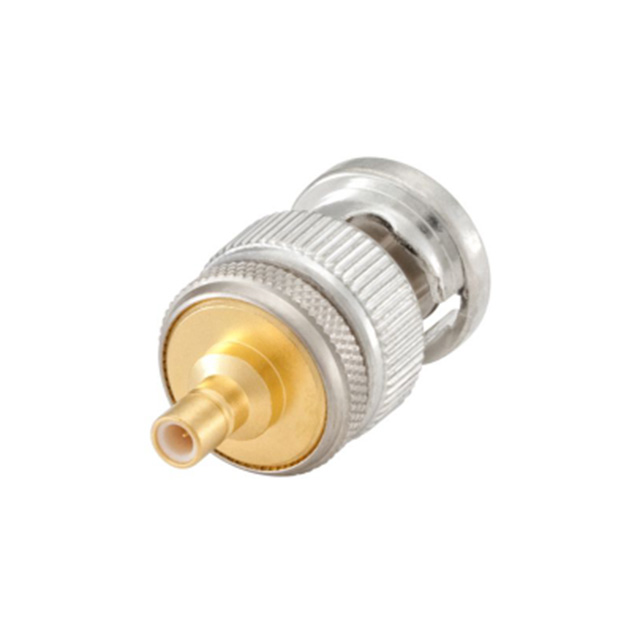

59S151-S00L5

Active

Rosenberger

CONN ADAPT BNC PLUG TO SMB PLUG

Search across all available documentation for this part.

Active

Rosenberger

CONN ADAPT BNC PLUG TO SMB PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	59S151-S00L5

Adapter Type	Plug to Plug
Body Finish	Nickel, Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert To (Adapter End)	BNC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On, Bayonet Lock
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Impedance	Conversion Type	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Mating Cycles	Mounting Type	Dielectric Material	Body Material	Fastening Type	Center Gender	Center Contact Material	Style	Adapter Type	Body Finish	Frequency - Max [Max]	Convert To (Adapter End)
Rosenberger 59S151-S00L5	50 Ohms	Between Series	155 °C	-55 °C	Gold	500	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Brass	Bayonet Lock Snap-On	Male to Male	Brass	Straight	Plug to Plug	Gold Nickel	4 GHz	BNC Plug Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	1	$ 39.82

General part information

Adapter Coaxial Connector SMB Plug, Male Pin To BNC Plug, Male Pin 50 Ohms
