PHG.0B.302.CLLD31Z

Active

LEMO

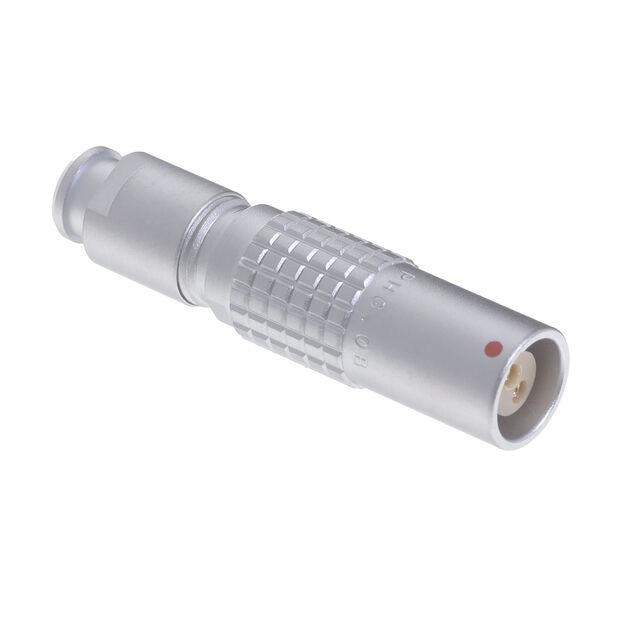

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

PHG.0B.302.CLLD31Z

Active

LEMO

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.61
		10	$ 28.29
		25	$ 25.65
		50	$ 23.87
		100	$ 22.25
		250	$ 20.35
		500	$ 19.07

Description

General part information

PHG.0B Series

2 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PHG.0B.302.CLLD31Z	PHG.0B Series

Attenuation - Typ	-	-1.13 dB
Backshell Material, Plating	Brass, Chrome	Brass, Chrome, Black Chrome
Boot Color	-	Gray
Cable Diameter	-	3.4 mm
Cable Opening	-	0.126 in
Cable Opening	-	4.2 mm
Cable Opening	-	0.165 in
Cable Opening	-	3.2 mm
Cable Opening	-	0.165 - 0.205 in
Cable Opening	-	0.13 - 4.2 mm
Cable Opening	-	3.3 - 5.2 mm
Cable Opening	-	0.22 in
Cable Opening	-	5.3 mm
Cable Opening	-	5.6 mm
Cable Opening	-	0.209 in
Cable Opening [custom]	0.091 in, 0.126 in	0.055 - 0.126 in
Cable Opening [custom]	2.3 mm, 3.2 mm	1.4 - 3.2 mm
Color	Silver	Silver, Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Insert Shell, Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze, Brass
Current Rating (Amps)	10 A	2 - 10 A
Fastening Type	Push-Pull	Push-Pull, Detent Lock
Features	Backshell	Backshell, Strain Relief
Ferrule Material	-	Metal
Fiber Cladding Diameter	-	1035 µm
Fiber Core Diameter	-	1000 µm
Housing Color	-	Black, Silver
Housing Material	-	Brass
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	1000
Mode	-	Multimode
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included; Insert Not Included
Number of Positions	2	2 - 11
Operating Temperature [Max]	250 °C	80 - 250 °C
Operating Temperature [Min]	-55 °C	-55 - -40 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	302	302 - 309
Shielding	Shielded	Shielded
Simplex/Duplex	-	Simplex
Termination	-	Crimp

PHG.0B Series

CONN RCPT FMALE 4P GOLD SLDR CUP

...

Part	Fastening Type	Features	Connector Type	Insert Material	Orientation	Material Flammability Rating	Number of Positions	Color	Backshell Material, Plating	Mounting Type	Current Rating (Amps)	Ingress Protection	Contact Material	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Contact Finish - Mating	Shell Finish	Shielding	Shell Size - Insert	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
LEMO PHG.0B.304.CLLZ	Push-Pull	Backshell	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	G	UL94 V-0	4	Silver	Brass, Chrome	Free Hanging (In-Line)	7 A	IP50	Bronze	Brass	-55 °C	250 °C	Metal	Gold	Chrome	Shielded	304	59 Áin	1.5 Ám
LEMO PHG.0B.304.CYMD31	Push-Pull	Backshell	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	G	UL94 V-0	4	Silver	Brass, Chrome	Free Hanging (In-Line)	7 A	IP50	Bronze	Brass	-55 °C	250 °C	Metal	Gold	Chrome	Shielded	304	59 Áin	1.5 Ám	Crimp	0.091 in, 0.126 in	2.3 mm, 3.2 mm
LEMO PHG.0B.302.CLLD31Z	Push-Pull	Backshell	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	G	UL94 V-0	2	Silver	Brass, Chrome	Free Hanging (In-Line)	10 A	IP50	Bronze	Brass	-55 °C	250 °C	Metal	Gold	Chrome	Shielded	302	59 Áin	1.5 Ám		0.091 in, 0.126 in	2.3 mm, 3.2 mm
LEMO PHG.0B.309.CLLD42Z	Push-Pull	Backshell	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	G	UL94 V-0	9	Silver	Brass, Chrome	Free Hanging (In-Line)	2 A	IP50	Bronze	Brass	-55 °C	250 °C	Metal	Gold	Chrome	Shielded	309	59 Áin	1.5 Ám				0.126 in	4.2 mm	0.165 in	3.2 mm
LEMO PHG.0B.307.CLLD42Z	Push-Pull	Backshell	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	G	UL94 V-0	7	Silver	Brass, Chrome	Free Hanging (In-Line)	2.5 A	IP50	Bronze	Brass	-55 °C	250 °C	Metal	Gold	Chrome	Shielded	307	59 Áin	1.5 Ám				0.126 in	4.2 mm	0.165 in	3.2 mm
LEMO PHG.0B.304.CYMD52	Push-Pull	Backshell	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	G	UL94 V-0	4	Silver	Brass, Chrome	Free Hanging (In-Line)	7 A	IP50	Bronze	Brass	-55 °C	250 °C	Metal	Gold	Chrome	Shielded	304	59 Áin	1.5 Ám	Crimp							0.165 in, 0.205 in	4.2 mm	5.2 mm
LEMO PHG.0B.305.CYMD42Z	Push-Pull	Backshell	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	G	UL94 V-0		Silver	Brass, Chrome	Free Hanging (In-Line)	6.5 A	IP50	Bronze	Brass	-55 °C	250 °C	Metal	Gold	Chrome	Shielded	305	59 Áin	1.5 Ám	Crimp			0.126 in	4.2 mm	0.165 in	3.2 mm
LEMO PHG.0B.305.CLLD35	Push-Pull	Backshell	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	G	UL94 V-0		Silver	Brass, Chrome	Free Hanging (In-Line)	6.5 A	IP50	Bronze	Brass	-55 °C	250 °C	Metal	Gold	Chrome	Shielded	305	59 Áin	1.5 Ám									0.13 in, 0.165 in	3.3 mm, 4.2 mm
LEMO PHG.0B.303.CLLD42Z	Push-Pull	Backshell	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	G	UL94 V-0		Silver	Brass, Chrome	Free Hanging (In-Line)	8 A	IP50	Bronze	Brass	-55 °C	250 °C	Metal	Gold	Chrome	Shielded	303	59 Áin	1.5 Ám				0.126 in	4.2 mm	0.165 in	3.2 mm
LEMO PHG.0B.304.CLLD52Z	Push-Pull	Backshell	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	G	UL94 V-0	4	Silver	Brass, Chrome	Free Hanging (In-Line)	7 A	IP50	Bronze	Brass	-55 °C	250 °C	Metal	Gold	Chrome	Shielded	304	59 Áin	1.5 Ám								0.165 in, 0.205 in	4.2 mm	5.2 mm
