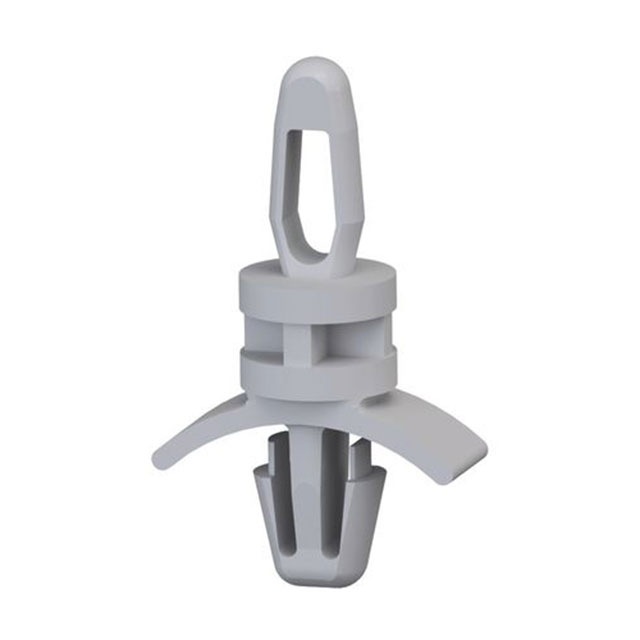

LCBS-4-3-19

Active

Essentra Access Solutions

BRD SPT SNAP FIT/LOCK NYLON 3/16

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LCBS-4-3-19

Between Board Height	0.188 "
Between Board Height	4.78 mm
Between Board Height	0.1875 "
Features	Winged
Holding Type	Snap Fit
Length - Overall [x]	0.921 "
Length - Overall [x]	23.4 mm
Material	Nylon
Mounting Hole Diameter [diameter]	0.187 in
Mounting Hole Diameter [diameter]	4.75 mm
Mounting Hole Diameter [diameter]	3 in
Mounting Panel Thickness [Max]	1.98 mm
Mounting Panel Thickness [Max]	0.078 "
Mounting Panel Thickness [Min]	0.79 mm
Mounting Panel Thickness [Min]	0.031 in
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

LCBS-4 Series

Part	Material	Between Board Height	Between Board Height	Between Board Height	Holding Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Features	Mounting Type	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]
Essentra Access Solutions LCBS-4-8-19	Nylon	0.5 in	12.7 mm	0.5 in	Snap Fit	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	Winged	Snap Lock	0.157 "	3.99 mm	1.232 in	31.3 mm	0.79 mm	1.98 mm	0.031 in	0.078 "
Essentra Access Solutions LCBS-4-12-01	Nylon	0.75 in	19.05 mm	0.75 in	Snap Fit	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	Winged	Snap Lock	0.157 "	3.99 mm	1.484 in	37.7 mm	0.79 mm	1.98 mm	0.031 in	0.078 "
Essentra Access Solutions LCBS-4-10-19	Nylon	0.625 in	15.88 mm	0.625 in	Snap Fit	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	Winged	Snap Lock	0.157 "	3.99 mm	1.358 in	34.5 mm	0.79 mm	1.98 mm	0.031 in	0.078 "
Essentra Access Solutions LCBS-4-01	Nylon	0.25 in	6.35 mm	0.25 in	Snap Fit	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	Winged	Snap Lock	0.157 "	3.99 mm	0.984 in	25 mm	0.79 mm	1.98 mm	0.031 in	0.078 "
Essentra Access Solutions LCBS-4-10-01	Nylon	0.625 in	15.88 mm	0.625 in	Snap Fit	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	Winged	Snap Lock	0.157 "	3.99 mm	1.358 in	34.5 mm	0.79 mm	1.98 mm	0.031 in	0.078 "
Essentra Access Solutions LCBS-4-6-01	Nylon	0.375 in	9.53 mm	0.375 in	Snap Fit	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	Winged	Snap Lock	0.157 "	3.99 mm	1.106 in	28.1 mm	0.79 mm	1.98 mm	0.031 in	0.078 "
Essentra Access Solutions LCBS-4-14-01	Nylon	0.875 in	0.875 in	22.23 mm	Snap Fit	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	Winged	Snap Lock	0.157 "	3.99 mm	1.606 in	40.8 mm	0.79 mm	1.98 mm	0.031 in	0.078 "
Essentra Access Solutions LCBS-4-3-19	Nylon	0.188 "	4.78 mm	0.1875 "	Snap Fit	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	Winged	Snap Lock	0.157 "	3.99 mm	0.921 "	23.4 mm	0.79 mm	1.98 mm	0.031 in	0.078 "
Essentra Access Solutions LCBS-4-22-01	Nylon	1.375 in	34.93 mm		Snap Fit	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	Winged	Snap Lock	0.157 "	3.99 mm	2.106 in	53.5 mm	0.79 mm	1.98 mm	0.031 in	0.078 "
Essentra Access Solutions LCBS-4-8-01	Nylon	0.5 in	12.7 mm	0.5 in	Snap Fit	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	Winged	Snap Lock	0.157 "	3.99 mm	1.232 in	31.3 mm	0.79 mm	1.98 mm	0.031 in	0.078 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.56
		10	$ 0.49
		25	$ 0.45
		50	$ 0.42
		100	$ 0.40
		250	$ 0.37
		500	$ 0.35
		1000	$ 0.29
		3000	$ 0.26

Description

General part information

LCBS-4 Series

Board Support Snap Fit / Snap Lock Nylon 0.188" (4.78mm) 3/16"
