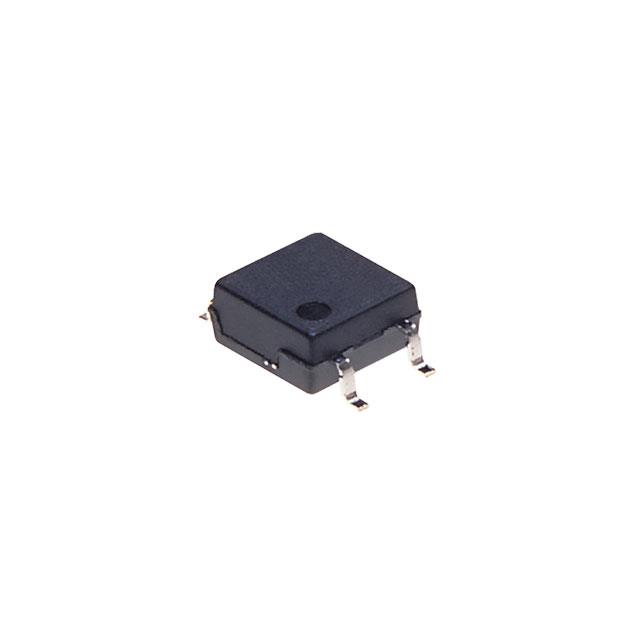

AQY212G3HSX

Active

Panasonic Electric Works

PHOTOMOS 60V 1.8A

Deep-Dive with AI

Search across all available documentation for this part.

AQY212G3HSX

Active

Panasonic Electric Works

PHOTOMOS 60V 1.8A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AQY212G3HSX

Approval Agency	BSI, cURus
Load Current	1.8 A
Mounting Type	Surface Mount
On-State Resistance (Max) [Max]	150 mOhms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	DC, AC
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SOP
Termination Style	Gull Wing
Voltage - Input	1.32 VDC
Voltage - Load [Max]	60 V
Voltage - Load [Min]	0 V

AQY212 Series

Part	Supplier Device Package	Approval Agency	Voltage - Input	On-State Resistance (Max) [Max]	Package / Case	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Load Current	Mounting Type	Voltage - Load [Max]	Termination Style	Package / Case
Panasonic Electric Works AQY212FG2SX	4-SOP	BSI cURus	1.4 V	500 mOhm	4-SOP	0.173 in	4.4 mm	85 °C	-40 °C	AC DC	1.25 A	Surface Mount	60 V	Gull Wing
Panasonic Electric Works AQY212G2S	4-SOP	BSI cURus	1.32 VDC	500 mOhm	4-SOP	0.173 in	4.4 mm	85 °C	-40 °C	AC DC	1.25 A	Surface Mount	60 V	Gull Wing
Panasonic Electric Works AQY212G2SZ	4-SOP	BSI cURus	1.32 VDC	500 mOhm	4-SOP	0.173 in	4.4 mm	85 °C	-40 °C	AC DC	1.25 A	Surface Mount	60 V	Gull Wing
Panasonic Electric Works AQY212EH	4-DIP	BSI cURus	1.14 VDC	2.5 Ohms	4-DIP (0.300" 7.62mm)			85 °C	-40 °C	AC DC	550 mA	Through Hole	60 V	PC Pin
Panasonic Electric Works AQY212G2SX	4-SOP	BSI cURus	1.32 VDC	500 mOhm	4-SOP	0.173 in	4.4 mm	85 °C	-40 °C	AC DC	1.25 A	Surface Mount	60 V	Gull Wing
Panasonic Electric Works AQY212GSZ	4-SOP	BSI cURus	1.32 VDC	700 mOhms	4-SOP	0.173 in	4.4 mm	85 °C	-40 °C	AC DC	1 A	Surface Mount	60 V	Gull Wing
Panasonic Electric Works AQY212SX	4-SOP	BSI cURus	1.14 VDC	2.5 Ohms	4-SOP	0.173 in	4.4 mm	85 °C	-40 °C	AC DC	500 mA	Surface Mount	60 V	Gull Wing
Panasonic Electric Works AQY212EHAX	4-SMD	BSI cURus	1.14 VDC	2.5 Ohms	4-SMD			85 °C	-40 °C	AC DC	550 mA	Surface Mount	60 V	Gull Wing	0.3 in 7.62 mm
Panasonic Electric Works AQY212G3HSX	4-SOP	BSI cURus	1.32 VDC	150 mOhms	4-SMD Gull Wing			85 °C	-40 °C	AC DC	1.8 A	Surface Mount	60 V	Gull Wing
Panasonic Electric Works AQY212GHA	4-SMD	BSI cURus	1.14 VDC	700 mOhms	4-SMD			85 °C	-40 °C	AC DC	1.1 A	Surface Mount	60 V	Gull Wing	0.3 in 7.62 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 9.50
		10	$ 8.91
		25	$ 7.92
		50	$ 7.52
		100	$ 7.13
		250	$ 6.33
		500	$ 5.94
	Digi-Reel®	1	$ 9.50
		10	$ 8.91
		25	$ 7.92
		50	$ 7.52
		100	$ 7.13
		250	$ 6.33
		500	$ 5.94
	Tape & Reel (TR)	1000	$ 5.54

Description

General part information

AQY212 Series

Solid State SPST-NO (1 Form A) 4-SMD, Gull Wing

Documents

Technical documentation and resources

No documents available
