Technical Specifications
Parameters and characteristics for this part
| Specification | B-U585I-IOT02A |
|---|---|
| Contents | Board(s) |
| Core Processor | ARM® Cortex®-M33 |
| Interconnect System | Arduino R3 Shield, STMod+, Pmod |
| Mounting Type | Fixed |
| Platform | Discovery |
| Suggested Programming Environment | STM32Cube, Keil MDK, IAR EW |
| Type | MCU 32-Bit |
| Utilized IC / Part | STM32U585AI |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
B-U585I-IOT02A Series

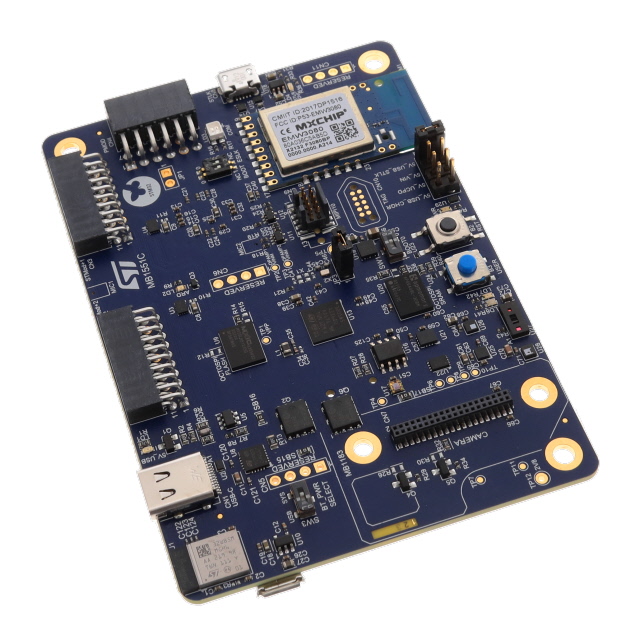

The B-U585I-IOT02A Discovery kit provides a complete demonstration and development platform for the STM32U585AI microcontroller, featuring an Arm®Cortex®-M33 core with Arm®TrustZone®and Armv8-M mainline security extension, 2 Mbytes of Flash memory and 786 Kbytes of SRAM, as well as smart peripheral resources.
This Discovery kit enables a wide diversity of applications by exploiting low-power communication, multiway sensing, and direct connection to cloud servers.
It includes Wi-Fi®and Bluetooth®modules, as well as microphones, temperature and humidity, magnetometer, accelerometer and gyroscope, pressure, time-of-flight, and gesture-detection sensors.
