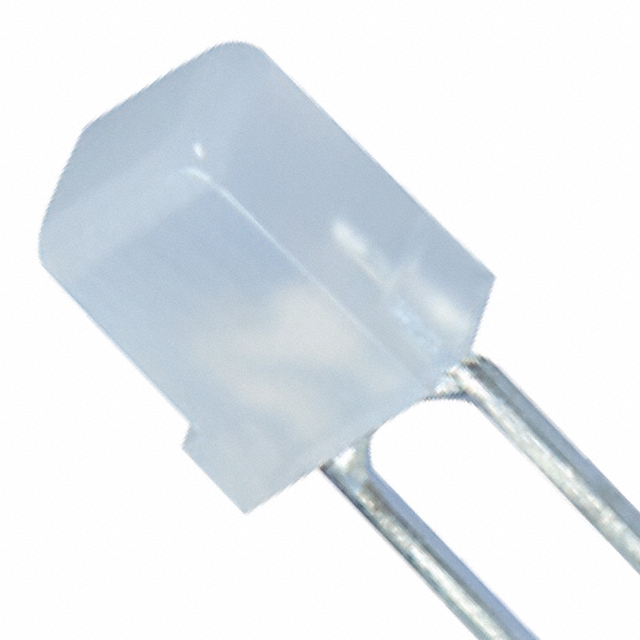

XSCGS43MB
ActiveSunLED
LED BLUE-GREEN DIFF ICE CUBE T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XSCGS43MB
ActiveSunLED
LED BLUE-GREEN DIFF ICE CUBE T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XSCGS43MB |
|---|---|
| Color | Blue-Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 4.8 mm |
| Lens Color | White |
| Lens Size | 3 mm |
| Lens Style | Square with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 268 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 3 mm |
| Supplier Device Package | ICE CUBE LED |
| Viewing Angle | 110 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
| Wavelength - Dominant | 505 nm |
| Wavelength - Peak | 505 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.45 | |
| 10 | $ 0.29 | |||
| 100 | $ 0.19 | |||
| 1000 | $ 0.16 | |||
Description
General part information
XSCGS43 Series
Blue-Green 505nm LED Indication - Discrete 3.2V Radial
