TDN 1-4815WISM

Active

Traco Power

MODULE DC-DC 48VIN 1-OUT 24V 0.045A 1W 6-PIN DIP SMD MODULE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

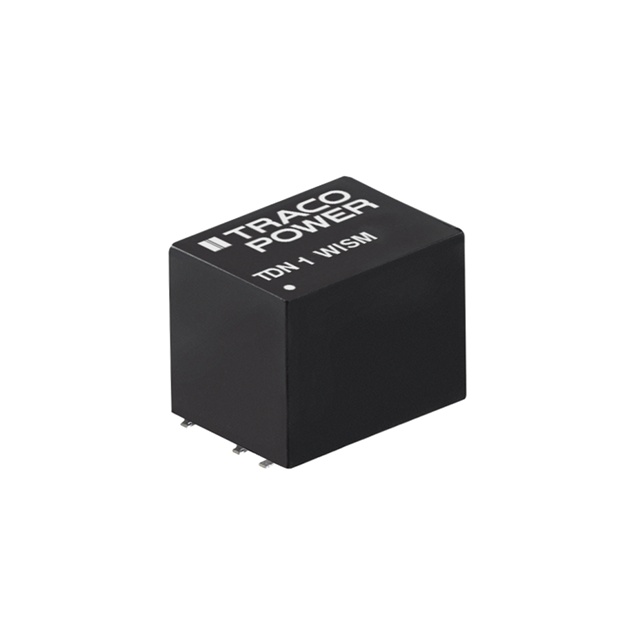

TDN 1-4815WISM

Active

Traco Power

MODULE DC-DC 48VIN 1-OUT 24V 0.045A 1W 6-PIN DIP SMD MODULE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TDN 1-4815WISM	TDN 1 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	-	100 mA
Current - Output (Max)	-	35 - 100 mA
Current - Output (Max) [Max]	45 mA	45 - 300 mA
Efficiency	80 %	76 - 81 %
Features	Remote On/Off, SCP	Remote On/Off, SCP
Mounting Type	Surface Mount	Through Hole, Surface Mount
Number of Outputs	1	1 - 2
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-SMD Module, 6 Leads	7-DIP Module, 6 Leads, 7-SMD Module, 6 Leads
Power (Watts)	1.1 W	1.1 W
Size / Dimension [x]	13.2 mm	13.2 mm
Size / Dimension [x]	0.52 in	0.52 in
Size / Dimension [y]	9.1 mm	9.1 mm
Size / Dimension [y]	0.36 "	0.36 "
Size / Dimension [z]	10.2 mm	10.2 mm
Size / Dimension [z]	0.4 "	0.4 "
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	75 V	18 - 75 V
Voltage - Input (Min) [Min]	18 V	4.5 - 18 V
Voltage - Isolation	1.6 kV	1.6 kV
Voltage - Output 1	24 V	3.3 - 24 V
Voltage - Output 2	-	-15 - -5 V

TDN 1 Series

DC DC CONVERTER 15V 1.1W

Part	Voltage - Input (Max) [Max]	Features	Mounting Type	Applications	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Voltage - Input (Min) [Min]	Package / Case	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Power (Watts)	Current - Output (Max) [Max]	Type	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
Traco Power TDN 1-2413WI	36 V	Remote On/Off, SCP	Through Hole	ITE (Commercial)	1.6 kV	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	81 %	9 V	7-DIP Module, 6 Leads	1	90 °C	-40 °C	15 V	1.1 W	70 mA	Isolated Module
Traco Power TDN 1-2410WI	36 V	Remote On/Off, SCP	Through Hole	ITE (Commercial)	1.6 kV	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	76 %	9 V	7-DIP Module, 6 Leads	1	90 °C	-40 °C	3.3 V		300 mA	Isolated Module
Traco Power TDN 1-4815WISM	75 V	Remote On/Off, SCP	Surface Mount	ITE (Commercial)	1.6 kV	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	80 %	18 V	7-SMD Module, 6 Leads	1	90 °C	-40 °C	24 V	1.1 W	45 mA	Isolated Module
Traco Power TDN 1-2411WISM	36 V	Remote On/Off, SCP	Surface Mount	ITE (Commercial)	1.6 kV	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	78 %	9 V	7-SMD Module, 6 Leads	1	90 °C	-40 °C	5 V		200 mA	Isolated Module
Traco Power TDN 1-4821WI	75 V	Remote On/Off, SCP	Through Hole	ITE (Commercial)	1.6 kV	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	77 %	18 V	7-DIP Module, 6 Leads	2	90 °C	-40 °C	5 V			Isolated Module	-5 V	100 mA	100 mA
Traco Power TDN 1-2419WI	36 V	Remote On/Off, SCP	Through Hole	ITE (Commercial)	1.6 kV	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	79 %	9 V	7-DIP Module, 6 Leads	1	90 °C	-40 °C	9 V		112 mA	Isolated Module
Traco Power TDN 1-2421WI	36 V	Remote On/Off, SCP	Through Hole	ITE (Commercial)	1.6 kV	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	77 %	9 V	7-DIP Module, 6 Leads	2	90 °C	-40 °C	5 V			Isolated Module	-5 V	100 mA	100 mA
Traco Power TDN 1-2419WISM	36 V	Remote On/Off, SCP	Surface Mount	ITE (Commercial)	1.6 kV	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	79 %	9 V	7-SMD Module, 6 Leads	1	90 °C	-40 °C	9 V		112 mA	Isolated Module
Traco Power TDN 1-2413WISM	36 V	Remote On/Off, SCP	Surface Mount	ITE (Commercial)	1.6 kV	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	81 %	9 V	7-SMD Module, 6 Leads	1	90 °C	-40 °C	15 V	1.1 W	70 mA	Isolated Module
Traco Power TDN 1-1215WI	18 V	Remote On/Off, SCP	Through Hole	ITE (Commercial)	1.6 kV	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	80 %	4.5 V	7-DIP Module, 6 Leads	1	90 °C	-40 °C	24 V	1.1 W	45 mA	Isolated Module
