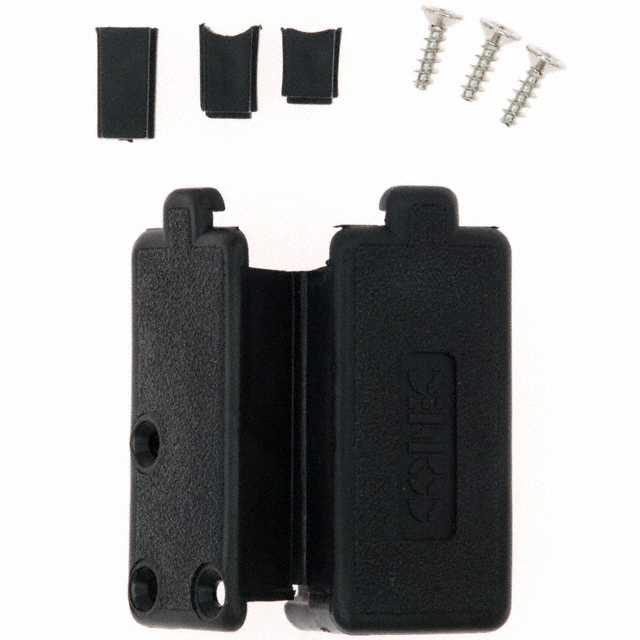

165X13219XE

Active

Amphenol CONEC

CONN BACKSHELL 9P 90/180DEG BLK

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN BACKSHELL 9P 90/180DEG BLK

Technical Specifications

Parameters and characteristics for this part

Specification	165X13219XE

Accessory Type	Hinged Backshell
Cable Exit	90°, 180°
Cable Type	Flat, Round
Color	Black
Compatible D-Sub Size	HD15pos, 9pos
Compatible Shell Size	E
Hardware	Assembly Hardware, Strain Relief
Number of Positions	9
Primary Material	Plastic
Shielding	Unshielded

Part	Shielding	Color	Accessory Type	Features	Compatible D-Sub Size	Cable Exit	Number of Positions	Hardware	Compatible Shell Size	Cable Type	Primary Material	Material	Cable Exit
Amphenol CONEC 165X13269X	Unshielded	Black	Two Piece Backshell	Mating Screws 4-40	50pos HD78pos	180 °	50	Assembly Hardware Strain Relief	D	Round	Plastic	Polyamide (PA66) Nylon 6/6 Glass Filled
Amphenol CONEC 165X13209X	Unshielded	Black	Two Piece Backshell	Mating Screws 4-40	37pos HD62pos	180 °	37	Assembly Hardware Strain Relief	C	Flat	Plastic	Polyamide (PA66) Nylon 6/6 Glass Filled
Amphenol CONEC 165X13219X	Unshielded	Black	Hinged Backshell		9pos HD15pos		9	Assembly Hardware Strain Relief	E	Flat Round	Plastic		180° 90°
Amphenol CONEC 165X13219XE	Unshielded	Black	Hinged Backshell		9pos HD15pos		9	Assembly Hardware Strain Relief	E	Flat Round	Plastic		180° 90°

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Hinged Backshell Connector Black 90°, 180° Unshielded

Technical documentation and resources

No documents available
