OA280LFG111T

Active

Orion Fans

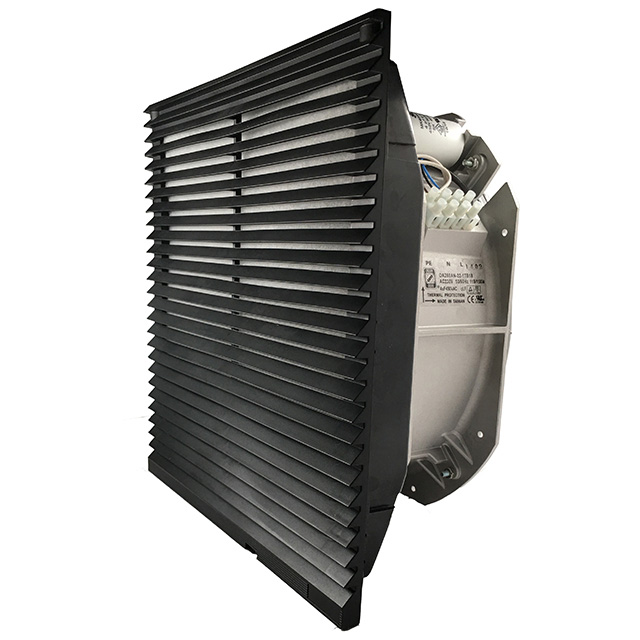

LOUVERED FILTER FAN SLIDE GUARD KIT WITH 280 MM FAN INSTALLED, 115V

Search across all available documentation for this part.

Active

Orion Fans

LOUVERED FILTER FAN SLIDE GUARD KIT WITH 280 MM FAN INSTALLED, 115V

Technical Specifications

Parameters and characteristics for this part

Specification	OA280LFG111T

Air Flow	1130 CFM
Air Flow	31.64 m³/min
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	1.5 A
Fan Type	Tubeaxial
Features	Kit, Thermal Overload Protector (TOP), Capacitor
Lifetime @ Temp.	40000 Hrs
Material - Blade	Metal
Material - Frame	Aluminum
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	148 W
RPM	2700 RPM
Size / Dimension [x]	320 mm
Size / Dimension [y]	320 mm
Static Pressure	161.9 Pa
Static Pressure	0.65 in H2O
Termination	Terminal Block
Voltage - Rated	115 VAC
Voltage Range [Max]	125 VAC
Voltage Range [Min]	100 VAC
Width [y]	141.5 mm

Part	Material - Blade	Features	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Power (Watts)	RPM	Fan Type	Approval Agency	Voltage - Rated	Current Rating (Amps)	Static Pressure	Static Pressure	Material - Frame	Air Flow	Air Flow	Termination	Bearing Type	Size / Dimension [z]	Voltage Range [Min]	Voltage Range [Max]
Orion Fans OA280LFG221T	Metal	Capacitor Kit Thermal Overload Protector (TOP)	141.5 mm	320 mm	320 mm	60 °C	60 °C	-40 °C	-40 °C	40000 Hrs	158 W	2700 RPM	Tubeaxial	cURus TUV	230 VAC	0.82 A	161.9 Pa	0.65 in H2O	Aluminum	1130 CFM	31.64 m³/min	Terminal Block	Ball
Orion Fans OA280LFGH111T	Metal	Capacitor Kit Thermal Overload Protector (TOP)	133.4 mm		322.7 mm	60 °C	60 °C	-40 °C	-40 °C	40000 Hrs	148 W	2700 RPM	Tubeaxial	cURus TUV	115 VAC		161.9 Pa	0.65 in H2O	Aluminum	1130 CFM	31.64 m³/min	Terminal Block	Ball	322.7 mm	100 VAC	125 VAC
Orion Fans OA280LFG111T	Metal	Capacitor Kit Thermal Overload Protector (TOP)	141.5 mm	320 mm	320 mm	60 °C	60 °C	-40 °C	-40 °C	40000 Hrs	148 W	2700 RPM	Tubeaxial	cURus TUV	115 VAC	1.5 A	161.9 Pa	0.65 in H2O	Aluminum	1130 CFM	31.64 m³/min	Terminal Block	Ball		100 VAC	125 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 115VAC Square - 320mm L x 320mm H Ball 1130.0 CFM (31.64m³/min) Terminal Block
