HLCBSE2-4M-01

Active

Essentra Access Solutions

BRD SPT HING LOCK SNAP LOCK 4MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

BRD SPT HING LOCK SNAP LOCK 4MM

Technical Specifications

Parameters and characteristics for this part

Specification	HLCBSE2-4M-01

Between Board Height	4 mm
Between Board Height	0.157 in
Holding Type	Hinged Lock
Length - Overall [x]	16.7 mm
Length - Overall [x]	0.657 in
Material	Nylon
Mounting Hole Diameter [diameter]	0.217 in
Mounting Hole Diameter [diameter]	5.5 mm
Mounting Panel Thickness [Max]	1.8 mm
Mounting Panel Thickness [Max]	0.071 "
Mounting Panel Thickness [Min]	1.2 mm
Mounting Panel Thickness [Min]	0.047 "
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness	1.6 mm
Support Panel Thickness	0.063 in

Part	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Material	Between Board Height	Between Board Height	Support Panel Thickness	Support Panel Thickness	Holding Type	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Type
Essentra Access Solutions HLCBSE2-10M-01	0.157 "	3.99 mm	0.894 in	22.7 mm	0.217 in	5.5 mm	Nylon	0.394 in	10 mm	1.6 mm	0.063 in	Hinged Lock	1.2 mm	1.8 mm	0.047 "	0.071 "	Snap Lock
Essentra Access Solutions HLCBSE2-6M-01	0.157 "	3.99 mm	0.736 in	18.7 mm	0.217 in	5.5 mm	Nylon	0.236 in	6 mm	1.6 mm	0.063 in	Hinged Lock	1.2 mm	1.8 mm	0.047 "	0.071 "	Snap Lock
Essentra Access Solutions HLCBSE2-25M-01	0.157 "	3.99 mm	1.484 in	37.7 mm	0.217 in	5.5 mm	Nylon	0.984 in	25 mm	1.6 mm	0.063 in	Hinged Lock	1.2 mm	1.8 mm	0.047 "	0.071 "	Snap Lock
Essentra Access Solutions HLCBSE2-4M-01	0.157 "	3.99 mm	0.657 in	16.7 mm	0.217 in	5.5 mm	Nylon	0.157 in	4 mm	1.6 mm	0.063 in	Hinged Lock	1.2 mm	1.8 mm	0.047 "	0.071 "	Snap Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

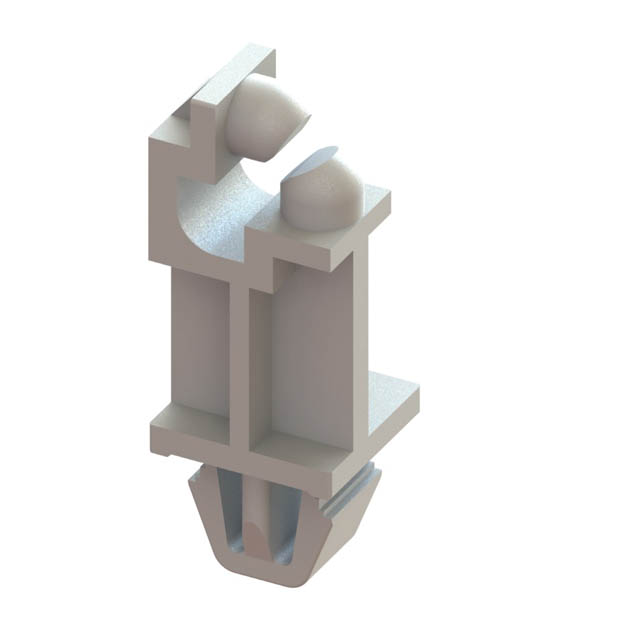

Board Support Hinged Lock / Snap Lock Nylon 0.157" (4.00mm)
