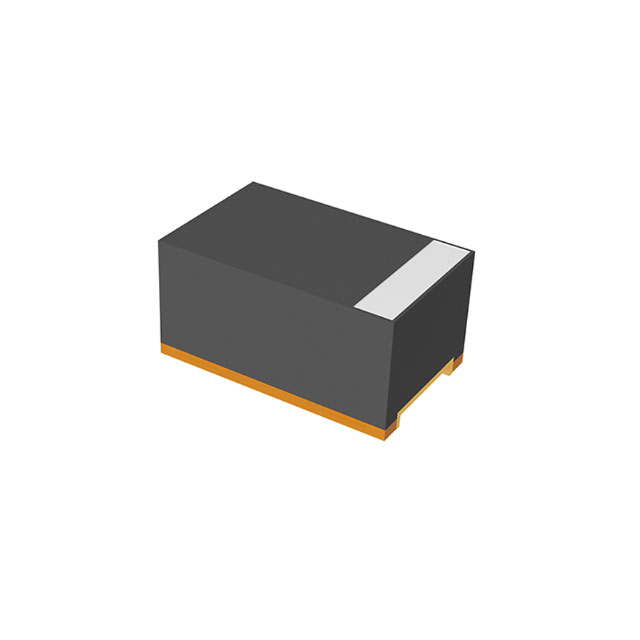

T529P106M006AAE200 - T529_Series

T529P106M006AAE200

Active
KEMET

TANTALUM CAPACITOR, POLARIZED, TANTALUM (SOLID POLYMER), 6.3V, 20% +TOL, 20% -TOL, 10UF, SURFACE MOUNT, 0805, CHIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetT529P106M006AAE200 Spec+2
T529P106M006AAE200 - T529_Series

T529P106M006AAE200

Active
KEMET

TANTALUM CAPACITOR, POLARIZED, TANTALUM (SOLID POLYMER), 6.3V, 20% +TOL, 20% -TOL, 10UF, SURFACE MOUNT, 0805, CHIP

Deep-Dive with AI

DocumentsDatasheetT529P106M006AAE200 Spec+2

Technical Specifications

Parameters and characteristics for this part

SpecificationT529P106M006AAE200
Capacitance10 µF
ESR (Equivalent Series Resistance)200 mOhm
FeaturesGeneral Purpose
Height - Seated (Max) [Max]0.039 "
Height - Seated (Max) [Max]1 mm
Lifetime @ Temp.1000 Hrs
Manufacturer Size CodeP
Mounting TypeSurface Mount
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Package / Case0805
Size / Dimension [x]2 mm
Size / Dimension [x]0.079 in
Size / Dimension [y]0.049 in
Size / Dimension [y]1.25 mm
Tolerance20 %
TypeMolded
Voltage - Rated6.3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.16
10$ 0.87
50$ 0.79
100$ 0.65
500$ 0.52
1000$ 0.46
Digi-Reel® 1$ 1.16
10$ 0.87
50$ 0.79
100$ 0.65
500$ 0.52
1000$ 0.46
Tape & Reel (TR) 3000$ 0.43
6000$ 0.41
9000$ 0.40
15000$ 0.39
NewarkEach (Supplied on Full Reel) 3000$ 0.44
6000$ 0.43
12000$ 0.40

Description

General part information

T529P Series

10 µF Molded Tantalum Polymer Capacitor 6.3 V 0805 (2012 Metric) 200mOhm @ 100kHz
