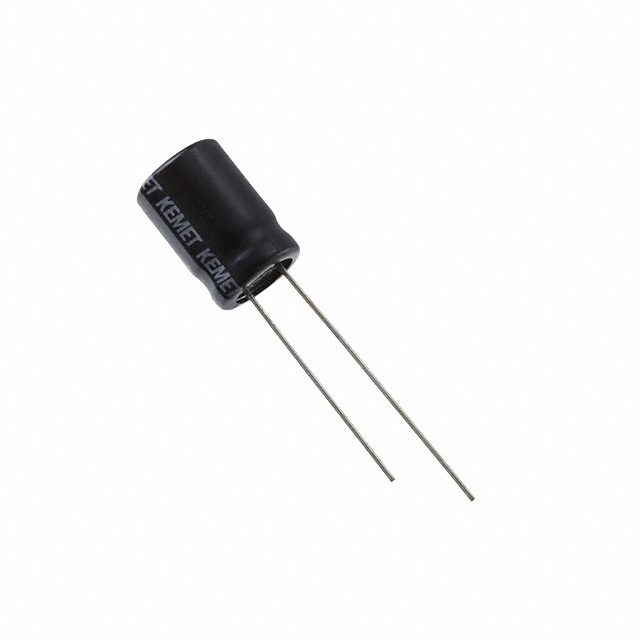

ESL107M050AGMAA

Active

KEMET

ELECTROLYTIC CAPACITOR, 100 ΜF, 50 V, ± 20%, RADIAL LEADED, 10000 HOURS @ 105°C, POLAR

Search across all available documentation for this part.

Active

KEMET

ELECTROLYTIC CAPACITOR, 100 ΜF, 50 V, ± 20%, RADIAL LEADED, 10000 HOURS @ 105°C, POLAR

Technical Specifications

Parameters and characteristics for this part

Specification	ESL107M050AGMAA

Applications	General Purpose
Capacitance	100 µF
ESR (Equivalent Series Resistance)	120 mOhm
Height - Seated (Max)	13.5 mm
Height - Seated (Max) [Max] [z]	0.531 "
Lead Spacing	3.5 mm
Lead Spacing	0.138 in
Lifetime @ Temp.	10000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	725 mA
Ripple Current @ Low Frequency	362.5 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Tolerance	20 %
Voltage - Rated	50 VDC

Part	Capacitance	Applications	Ripple Current @ Low Frequency	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Lead Spacing	Lead Spacing	Polarization	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Mounting Type	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ESL107M050AGMAA	100 µF	General Purpose	362.5 mA	20 %	0.315 "	8 mm	Radial Can	3.5 mm	0.138 in	Polar	50 VDC	-40 °C	105 ░C	0.531 "	13.5 mm	10000 Hrs	120 mOhm	Through Hole	725 mA
KEMET ESL107M035AE3AA	100 µF	General Purpose	272.5 mA	20 %	0.248 in	6.3 mm	Radial Can	2.5 mm	0.098 in	Polar	35 V	-40 °C	105 ░C			8000 Hrs	85 mOhm	Through Hole	545 mA	0.492 in	12.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 120mOhm @ 100kHz 10000 Hrs @ 105°C
