0801662

Active

Phoenix Contact

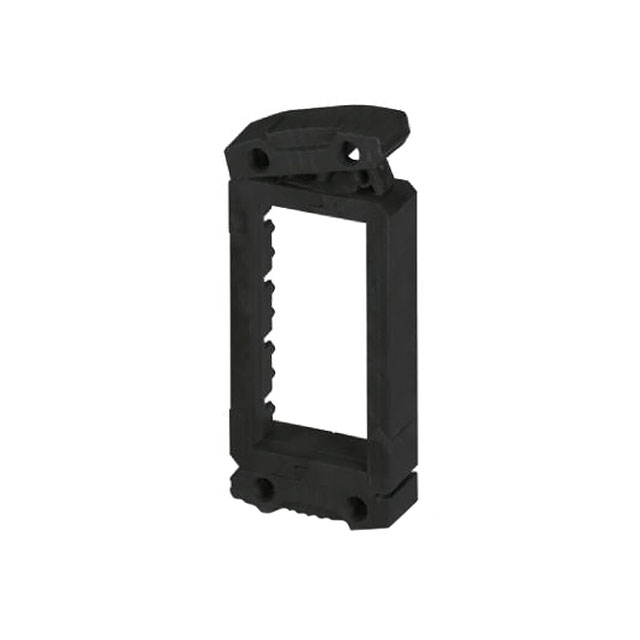

CONN SEALING FRAME WITH LATCH

Search across all available documentation for this part.

Active

Phoenix Contact

CONN SEALING FRAME WITH LATCH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0801662	CES-B16 Series

Accessory Type	Locking Latch, Sealing Frame	Snap-Up Frame, Gasket, Flat, Locking Latch, Sealing Frame
Features	-	2.26 - 4.65 in
Features	-	2.24 - 5.04 in
Features [x]	2.3 ", 58.5 mm	2.3 - 118 mm
Features [y]	4.72 ", 120 mm	4.72 - 128 mm
For Use With/Related Products	PLUSCON CES Cable Sleeves	PLUSCON CES Sealing Frames, PLUSCON CES Cable Sleeves, PLUSCON CES Snap-up Frame
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Rubber

SNAP ON FRAME

Part	Material	For Use With/Related Products	Features [x]	Features [y]	Features [x]	Features [y]	Accessory Type
Phoenix Contact 0801651	Polyamide (PA), Nylon	PLUSCON CES Sealing Frames	2.52 in	5.04 in	64 mm	128 mm	Snap-Up Frame
Phoenix Contact 0801726	Rubber	PLUSCON CES Sealing Frames	2.26 in	4.72 in	57.5 mm	120 mm	Gasket, Flat
Phoenix Contact 0801662	Polyamide (PA), Nylon	PLUSCON CES Cable Sleeves			2.3 ", 58.5 mm	4.72 ", 120 mm	Locking Latch, Sealing Frame
Phoenix Contact 0801642		PLUSCON CES Snap-up Frame	4.65 in	2.24 in	118 mm	57 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Sealing Frame, Locking Latch For PLUSCON CES Cable Sleeves

Technical documentation and resources

No documents available
