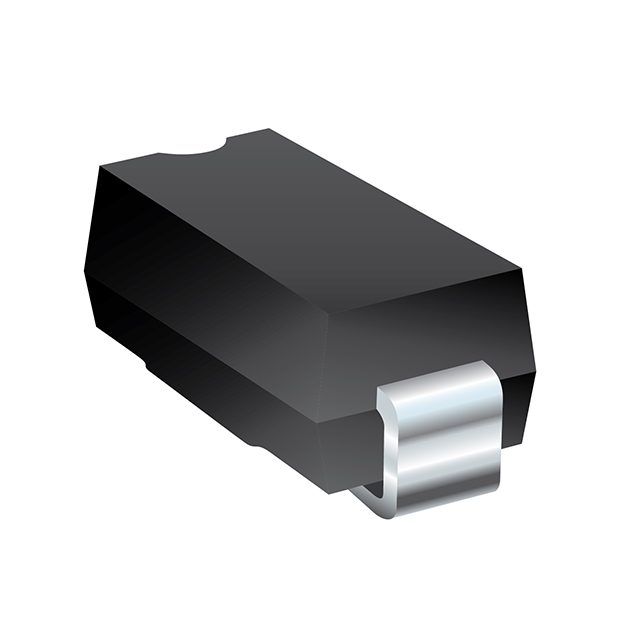

SMLJ43A
ActiveBourns Inc.
TVS DIODE 43VWM 69.4VC SMC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMLJ43A
ActiveBourns Inc.
TVS DIODE 43VWM 69.4VC SMC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMLJ43A |
|---|---|
| Applications | General Purpose |
| Current - Peak Pulse (10/1000µs) | 43.2 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SMC, DO-214AB |
| Power - Peak Pulse | 3000 W |
| Power - Peak Pulse | 3 kW |
| Power Line Protection | False |
| Supplier Device Package | SMC (DO-214AB) |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 47.8 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 69.4 V |
| Voltage - Reverse Standoff (Typ) | 43 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.70 | |
| 10 | $ 0.57 | |||
| 100 | $ 0.45 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.38 | |||
| Digi-Reel® | 1 | $ 0.70 | ||
| 10 | $ 0.57 | |||
| 100 | $ 0.45 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.38 | |||
| Tape & Reel (TR) | 3000 | $ 0.38 | ||
Description
General part information
SMLJ43 Series
69.4V Clamp 43.2A Ipp Tvs Diode Surface Mount SMC (DO-214AB)
