HEEE-048-M
ActiveTE Connectivity AMP Connectors

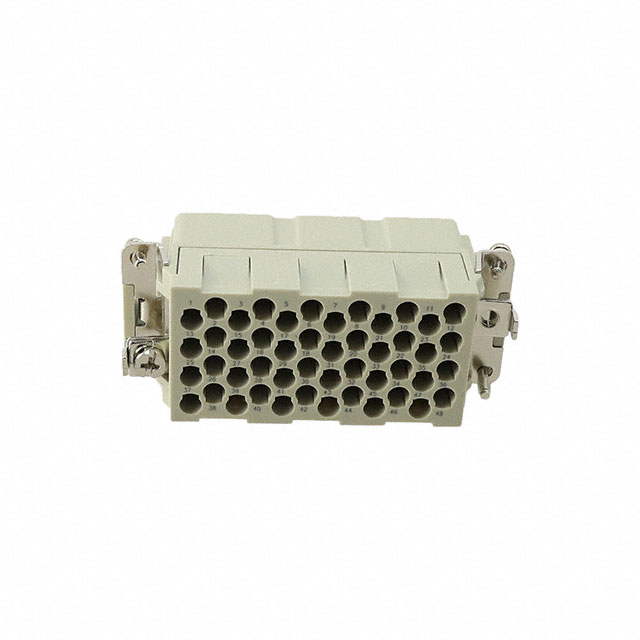

INSERT MALE 48P+1GND HEEE-048-M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HEEE-048-M
ActiveTE Connectivity AMP Connectors
INSERT MALE 48P+1GND HEEE-048-M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HEEE-048-M |
|---|---|
| Connector Type | Insert without Contacts |
| Contact Type | CEM, DEM |
| Current Rating (Amps) | 16 A |
| Gender | Male |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | EN45545 |
| Number of Positions | 48 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | H16B |
| Termination Style | Crimp |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.26 | |
| 10 | $ 18.07 | |||
| 25 | $ 16.93 | |||
| 50 | $ 16.13 | |||
| 100 | $ 15.36 | |||
| 250 | $ 14.40 | |||
| 500 | $ 13.71 | |||
T2050482101 Series
INSERT MALE 48P+1GND HEEE-048-M
| Part | Gender | Contact Type | Housing Material | Current Rating (Amps) | Material Flammability Rating | Voltage Rating | Size | Termination Style | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors HEEE-048-M | Male | CEM, DEM | Polycarbonate (PC) | 16 A | EN45545 | 400 V | H16B | Crimp | Insert without Contacts | 125 °C | -40 °C | 48 |
Description
General part information
T2050482101 Series
Male Insert without Contacts 48+Ground Position Crimp
