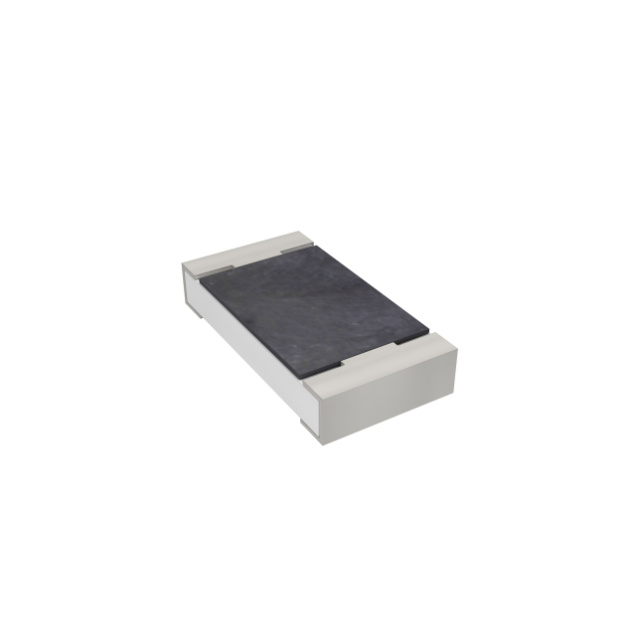

AR1206FR-072K7L

Active

YAGEO

RES THICK FILM 1206 2.7K OHM 1% 0.25W(1/4W) ±100PPM/°C PAD SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsChip Resistors Mounting Chip Resistor Marking +3

AR1206FR-072K7L

Active

YAGEO

RES THICK FILM 1206 2.7K OHM 1% 0.25W(1/4W) ±100PPM/°C PAD SMD T/R

Deep-Dive with AI

DocumentsChip Resistors Mounting Chip Resistor Marking +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AR1206FR-072K7L	AR1206FR Series

Composition	Thick Film	Thick Film
Features	Moisture Resistant	Moisture Resistant
Height - Seated (Max) [Max]	0.026 in	0.026 in
Height - Seated (Max) [Max]	0.65 mm	0.65 mm
Number of Terminations	2	2
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1206 (3216 Metric)	1206 (3216 Metric)
Power (Watts)	0.25 W	0.25 W
Power (Watts)	250 mW	250 mW
Resistance	2.7 kOhms	2 - 1500 Ohms
Size / Dimension [x]	3.1 mm	3.1 mm
Size / Dimension [x]	0.122 "	0.122 "
Size / Dimension [y]	1.6 mm	1.6 mm
Size / Dimension [y]	0.063 in	0.063 in
Supplier Device Package	1206	1206
Temperature Coefficient	100 ppm/°C	100 - 200 ppm/°C
Tolerance	1 %	1 %

AR1206FR Series

RES SMD 4.22 OHM 1% 1/4W 1206

Part	Operating Temperature [Max]	Operating Temperature [Min]	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Resistance	Composition	Tolerance	Number of Terminations	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient	Supplier Device Package	Power (Watts)	Power (Watts)
YAGEO AR1206FR-074R22L	155 °C	-55 °C	Moisture Resistant	0.026 in	0.65 mm	4.22 Ohms	Thick Film	1 %	2	1206 (3216 Metric)	1.6 mm	3.1 mm	0.063 in	0.122 "	200 ppm/°C	1206	0.25 W	250 mW
YAGEO AR1206FR-07402KL	155 °C	-55 °C	Moisture Resistant	0.026 in	0.65 mm	402 kOhms	Thick Film	1 %	2	1206 (3216 Metric)	1.6 mm	3.1 mm	0.063 in	0.122 "	100 ppm/°C	1206	0.25 W	250 mW
YAGEO AR1206FR-075K6L	155 °C	-55 °C	Moisture Resistant	0.026 in	0.65 mm	5.6 kOhms	Thick Film	1 %	2	1206 (3216 Metric)	1.6 mm	3.1 mm	0.063 in	0.122 "	100 ppm/°C	1206	0.25 W	250 mW
YAGEO AR1206FR-072K7L	155 °C	-55 °C	Moisture Resistant	0.026 in	0.65 mm	2.7 kOhms	Thick Film	1 %	2	1206 (3216 Metric)	1.6 mm	3.1 mm	0.063 in	0.122 "	100 ppm/°C	1206	0.25 W	250 mW
YAGEO AR1206FR-07560KL	155 °C	-55 °C	Moisture Resistant	0.026 in	0.65 mm	560 kOhms	Thick Film	1 %	2	1206 (3216 Metric)	1.6 mm	3.1 mm	0.063 in	0.122 "	100 ppm/°C	1206	0.25 W	250 mW
YAGEO AR1206FR-0710RL	155 °C	-55 °C	Moisture Resistant	0.026 in	0.65 mm	10 Ohms	Thick Film	1 %	2	1206 (3216 Metric)	1.6 mm	3.1 mm	0.063 in	0.122 "	200 ppm/°C	1206	0.25 W	250 mW
YAGEO AR1206FR-0776R8L	155 °C	-55 °C	Moisture Resistant	0.026 in	0.65 mm	76.8 Ohms	Thick Film	1 %	2	1206 (3216 Metric)	1.6 mm	3.1 mm	0.063 in	0.122 "	100 ppm/°C	1206	0.25 W	250 mW
YAGEO AR1206FR-072R61L	155 °C	-55 °C	Moisture Resistant	0.026 in	0.65 mm	2.61 Ohms	Thick Film	1 %	2	1206 (3216 Metric)	1.6 mm	3.1 mm	0.063 in	0.122 "	200 ppm/°C	1206	0.25 W	250 mW
YAGEO AR1206FR-07511KL	155 °C	-55 °C	Moisture Resistant	0.026 in	0.65 mm	511 kOhms	Thick Film	1 %	2	1206 (3216 Metric)	1.6 mm	3.1 mm	0.063 in	0.122 "	100 ppm/°C	1206	0.25 W	250 mW
YAGEO AR1206FR-0712KL	155 °C	-55 °C	Moisture Resistant	0.026 in	0.65 mm	12 kOhms	Thick Film	1 %	2	1206 (3216 Metric)	1.6 mm	3.1 mm	0.063 in	0.122 "	100 ppm/°C	1206	0.25 W	250 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.11

Description

General part information

AR1206FR Series

2.7 kOhms ±1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Moisture Resistant Thick Film
