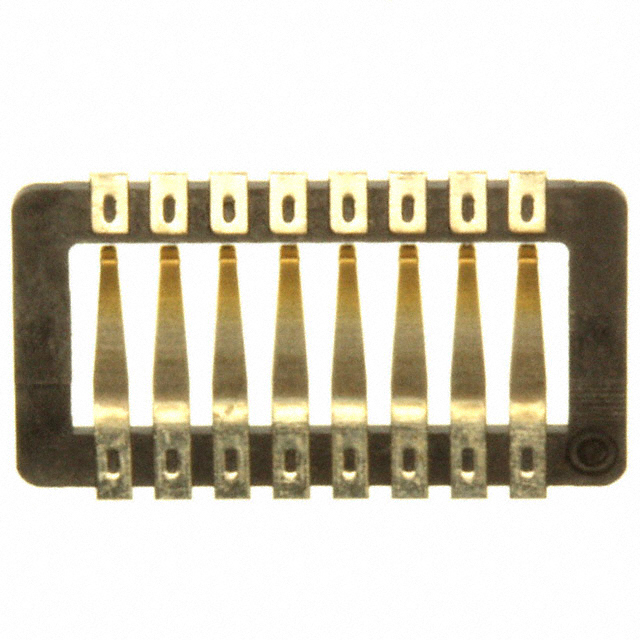

009258008004061
ActiveKYOCERA AVX
STACKING BOARD CONNECTOR, BBD SERIES, 8 CONTACTS, RECEPTACLE, 1 MM, SURFACE MOUNT, 1 ROWS
Deep-Dive with AI
Search across all available documentation for this part.
009258008004061
ActiveKYOCERA AVX
STACKING BOARD CONNECTOR, BBD SERIES, 8 CONTACTS, RECEPTACLE, 1 MM, SURFACE MOUNT, 1 ROWS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 009258008004061 | 009258 Series |
|---|---|---|
| Connector Type | Compression Contact, Non-Gendered | Compression Contact, Non-Gendered |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 10 Áin | 10 Áin |
| Contact Finish Thickness | 0.25 Ám | 0.25 Ám |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Contacts | 8 | 8 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 0.039 in | 0.039 in |
| Pitch [x] | 1 mm | 1 mm |
009258 Series
STACKING BOARD CONNECTOR, BBD SERIES, 8 CONTACTS, RECEPTACLE, 1 MM, SURFACE MOUNT, 1 ROWS
| Part | Connector Type | Mounting Type | Number of Rows | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Contacts | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|
KYOCERA AVX 009258008004061 | Compression Contact, Non-Gendered | Surface Mount | 1 | Gold | 10 Áin | 0.25 Ám | 8 | 0.039 in | 1 mm |
KYOCERA AVX 009258008004064 | Compression Contact, Non-Gendered | Surface Mount | 1 | Gold | 10 Áin | 0.25 Ám | 8 | 0.039 in | 1 mm |
KYOCERA AVX 009258008008063 | Compression Contact, Non-Gendered | Surface Mount | 1 | Gold | 10 Áin | 0.25 Ám | 8 | 0.039 in | 1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
009258 Series
8 Position Spring Compression Contact, Non-Gendered Connector Surface Mount
