009258008004064

Active

KYOCERA AVX

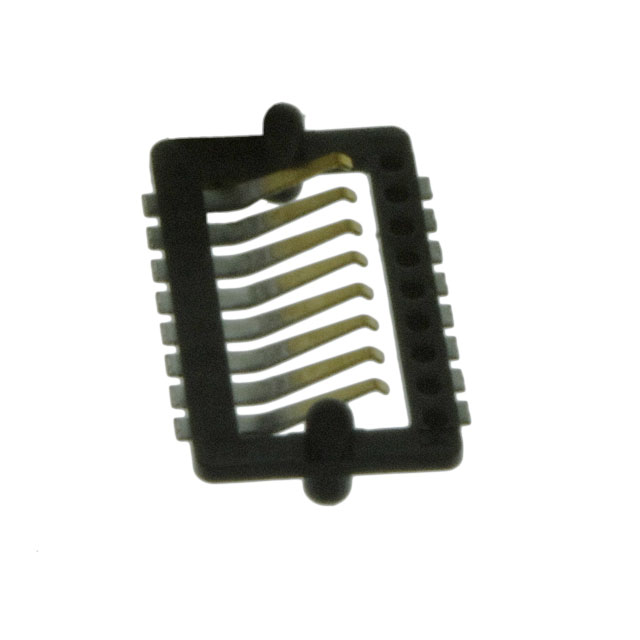

CONN SPRING MOD 8POS SMD

Search across all available documentation for this part.

Active

KYOCERA AVX

CONN SPRING MOD 8POS SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	009258008004064	009258 Series

Connector Type	Compression Contact, Non-Gendered	Compression Contact, Non-Gendered
Contact Finish	Gold	Gold
Contact Finish Thickness	10 Áin	10 Áin
Contact Finish Thickness	0.25 Ám	0.25 Ám
Mounting Type	Surface Mount	Surface Mount
Number of Contacts	8	8
Number of Rows	1	1
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm

STACKING BOARD CONNECTOR, BBD SERIES, 8 CONTACTS, RECEPTACLE, 1 MM, SURFACE MOUNT, 1 ROWS

Part	Connector Type	Mounting Type	Number of Rows	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Contacts	Pitch [x]	Pitch [x]
KYOCERA AVX 009258008004061	Compression Contact, Non-Gendered	Surface Mount	1	Gold	10 Áin	0.25 Ám	8	0.039 in	1 mm
KYOCERA AVX 009258008004064	Compression Contact, Non-Gendered	Surface Mount	1	Gold	10 Áin	0.25 Ám	8	0.039 in	1 mm
KYOCERA AVX 009258008008063	Compression Contact, Non-Gendered	Surface Mount	1	Gold	10 Áin	0.25 Ám	8	0.039 in	1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Spring Compression Contact, Non-Gendered Connector Surface Mount
