202422-1
ActiveTE Connectivity Raychem Cable Protection

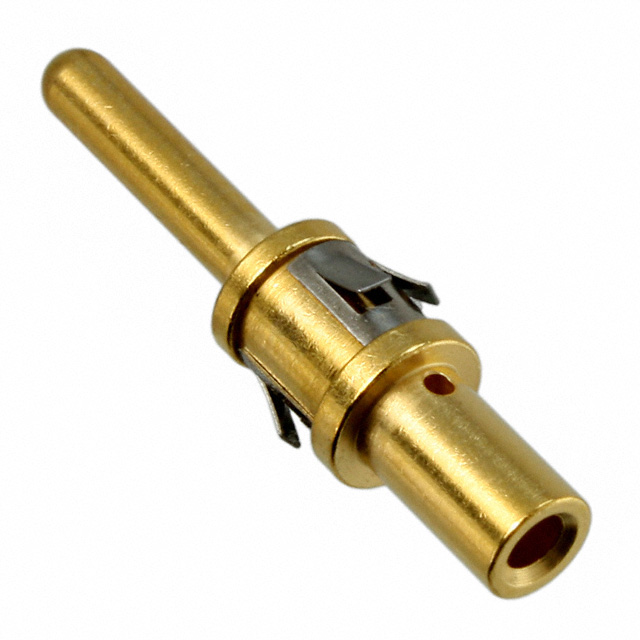

PIN CONT ASSY,TYPE I
Deep-Dive with AI
Search across all available documentation for this part.
202422-1
ActiveTE Connectivity Raychem Cable Protection
PIN CONT ASSY,TYPE I
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 202422-1 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Type | Power, Machined |
| Wire Gauge [Max] | 14 AWG |
| Wire Gauge [Min] | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.26 | |
| 10 | $ 12.97 | |||
| 25 | $ 12.16 | |||
| 50 | $ 11.58 | |||
| 100 | $ 11.02 | |||
| 300 | $ 10.20 | |||
| 500 | $ 9.84 | |||
| 1000 | $ 9.37 | |||
Description
General part information
METRIMATE Power VIII Series
Pin Contact, Gold (Au), Snap-In Contact Retention, Size 16 Contact Size, 14 – 12 AWG, 2 – 3 mm² Wire, Crimp, Phosphor Bronze, METRIMATE Power VIII
