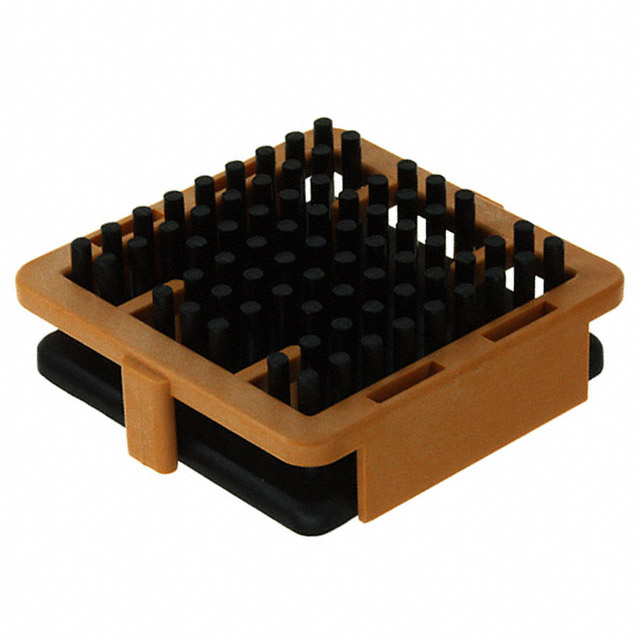

APR33-33-12CB/S

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK FORGED WITH SMALL CLIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA01 Laminating Adhesive Datasheet

APR33-33-12CB/S

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK FORGED WITH SMALL CLIP

Deep-Dive with AI

DocumentsA01 Laminating Adhesive Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APR33-33-12CB/S

Attachment Method	Clip
Length	32.6 mm
Length	1.283 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Pin Fins
Thermal Resistance @ Forced Air Flow	200 LFM, 3.8 °C/W
Type	Top Mount
Width [y]	1.283 "
Width [y]	32.6 mm

APR33 Series

Part	Attachment Method	Shelf Life	Shape	Length	Length	Width [y]	Width [y]	Thermal Resistance @ Natural	Thermal Resistance @ Forced Air Flow	Type	Fin Height [z]	Fin Height [z]	Material	Package Cooled	Material Finish	Fin Height	Fin Height
Tusonix a Subsidiary of CTS Electronic Components APR33-33-15CB/A01	Thermal Tape Adhesive (Included)	24 Months	Pin Fins Square	32.6 mm	1.283 in	1.283 "	32.6 mm	11.35 °C/W	3.27 °C/W	Top Mount	0.575 in	14.6 mm	Aluminum Alloy	ASIC BGA CPU LGA	Black Anodized
Tusonix a Subsidiary of CTS Electronic Components APR33-33-23CB/A01	Thermal Tape Adhesive (Included)	24 Months	Pin Fins Square	32.6 mm	1.283 in	1.283 "	32.6 mm	10.24 °C/W	2.56 °C/W 200 LFM	Top Mount			Aluminum Alloy	ASIC BGA CPU LGA	Black Anodized	22.61 mm	0.89 in
Tusonix a Subsidiary of CTS Electronic Components APR33-33-28CB/A01	Thermal Tape Adhesive (Included)	24 Months	Pin Fins Square	32.6 mm	1.283 in	1.283 "	32.6 mm	9.4 °C/W	2.33 °C/W 200 LFM	Top Mount	1.087 in	27.6 mm	Aluminum Alloy	ASIC BGA CPU LGA	Black Anodized
Tusonix a Subsidiary of CTS Electronic Components APR33-33-12CB/A01	Thermal Tape Adhesive (Included)	24 Months	Pin Fins Square	32.6 mm	1.283 in	1.283 "	32.6 mm		3.8 °C/W 200 LFM	Top Mount			Aluminum	ASIC BGA CPU LGA	Black Anodized
Tusonix a Subsidiary of CTS Electronic Components APR33-33-33CB/A01	Thermal Tape Adhesive (Included)	24 Months	Pin Fins Square	32.6 mm	1.283 in	1.283 "	32.6 mm	8.89 °C/W	2.12 °C/W 200 LFM	Top Mount			Aluminum Alloy	ASIC BGA CPU LGA	Black Anodized	32.6 mm	1.283 "
Tusonix a Subsidiary of CTS Electronic Components APR33-33-12CB/S	Clip		Pin Fins Square	32.6 mm	1.283 in	1.283 "	32.6 mm		3.8 °C/W 200 LFM	Top Mount			Aluminum	ASIC BGA CPU LGA	Black Anodized
Tusonix a Subsidiary of CTS Electronic Components APR33-33-18CB/A01	Thermal Tape Adhesive (Included)	24 Months	Pin Fins Square	32.6 mm	1.283 in	1.283 "	32.6 mm	10.96 °C/W	3.01 °C/W 200 LFM	Top Mount			Aluminum Alloy	ASIC BGA CPU LGA	Black Anodized
Tusonix a Subsidiary of CTS Electronic Components APR33-33-21CB/A01	Thermal Tape Adhesive (Included)	24 Months	Pin Fins Square	32.6 mm	1.283 in	1.283 "	32.6 mm	10.54 °C/W	2.78 °C/W	Top Mount	0.811 in	20.6 mm	Aluminum Alloy	ASIC BGA CPU LGA	Black Anodized

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

APR33 Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount

Documents

Technical documentation and resources

A01 Laminating Adhesive

Datasheet
