MAXQ616V-L000+T
ActiveAnalog Devices Inc./Maxim Integrated
SOC IR REMOTE CONTROL 16WLP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAXQ616V-L000+T
ActiveAnalog Devices Inc./Maxim Integrated
SOC IR REMOTE CONTROL 16WLP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXQ616V-L000+T | MAXQ616 Series |
|---|---|---|
| Connectivity | I2C, SPI, UART/USART | I2C, SPI, UART/USART |
| Core Processor | MAXQ20S | MAXQ20S |
| Core Size | 16-Bit | 16-Bit |
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 10 | 10 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |

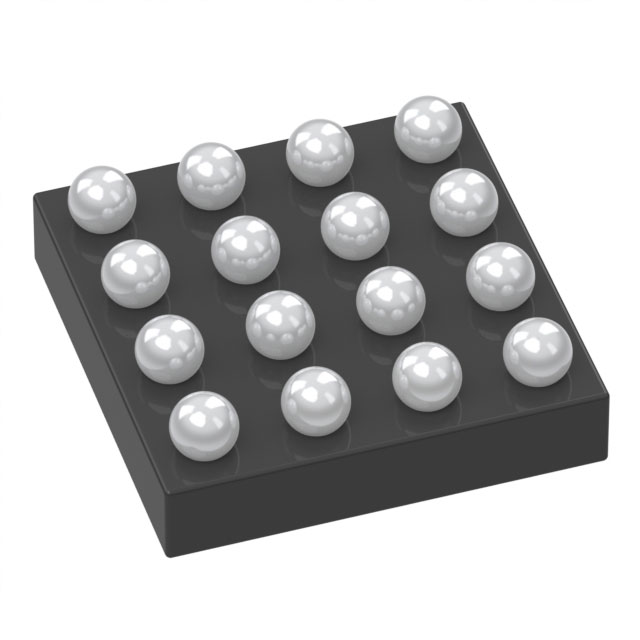

| Package / Case | 16-WFBGA, WLBGA | 16-WFBGA, WLBGA |
| Peripherals | WDT, POR, Power-Fail, Infrared, Brown-out Detect/Reset | WDT, POR, Power-Fail, Infrared, Brown-out Detect/Reset |
| Program Memory Size | 80 KB | 80 KB |
| Program Memory Type | FLASH | FLASH |
| RAM Size | 2K x 8 | 2K x 8 |
| Speed | 12 MHz | 12 MHz |
| Supplier Device Package | 16-WLP | 16-WLP |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.67 V | 1.67 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
MAXQ616 Series
SOC IR REMOTE CONTROL 16WLP
| Part | Core Size | Core Processor | RAM Size | Peripherals | Connectivity | Package / Case | Program Memory Type | Number of I/O | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Speed | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Supplier Device Package | Program Memory Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXQ616V-L001+T | 16-Bit | MAXQ20S | 2K x 8 | Brown-out Detect/Reset, Infrared, POR, Power-Fail, WDT | I2C, SPI, UART/USART | 16-WFBGA, WLBGA | FLASH | 10 | Surface Mount | 70 °C | 0 °C | 12 MHz | 3.6 V | 1.67 V | 16-WLP | 80 KB |
Analog Devices Inc./Maxim Integrated MAXQ616V-L000+T | 16-Bit | MAXQ20S | 2K x 8 | Brown-out Detect/Reset, Infrared, POR, Power-Fail, WDT | I2C, SPI, UART/USART | 16-WFBGA, WLBGA | FLASH | 10 | Surface Mount | 70 °C | 0 °C | 12 MHz | 3.6 V | 1.67 V | 16-WLP | 80 KB |
Description
General part information
MAXQ616 Series
MAXQ20S MAXQ® Microcontroller IC 16-Bit 12MHz 80KB (80K x 8) FLASH 16-WLP
