30804 009250

Active

Belden Inc.

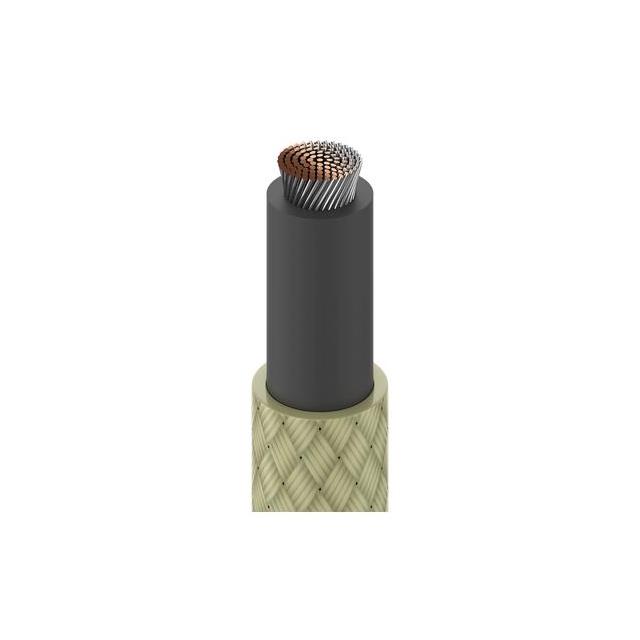

HOOK-UP STRND 4AWG WHITE

Search across all available documentation for this part.

Active

Belden Inc.

HOOK-UP STRND 4AWG WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	30804 009250

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand	105 strands, 24 AWG
Jacket (Insulation) Diameter [diameter]	0.424 in
Jacket (Insulation) Diameter [diameter]	10.77 mm
Jacket (Insulation) Material	Glass, Silicone
Jacket (Insulation) Thickness	1.6 mm
Jacket (Insulation) Thickness	0.063 in
Length	3000 "
Length	76.2 m
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style 3126
Voltage	600 V
Wire Gauge	4 AWG

Part	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand	Cable Type	Jacket (Insulation) Material	Ratings	Voltage	Length	Length	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]
Belden Inc. 30804 009250	4 AWG	1.6 mm	0.063 in	0.424 in	10.77 mm	24 AWG 105 strands	Hook-Up	Glass Silicone	UL Style 3126	600 V	3000 "	76.2 m	Copper Tinned	200 °C	-70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	250	$ 11.54

General part information

4 AWG Hook-Up Wire 105/24 White 600V 250.0' (76.2m)
