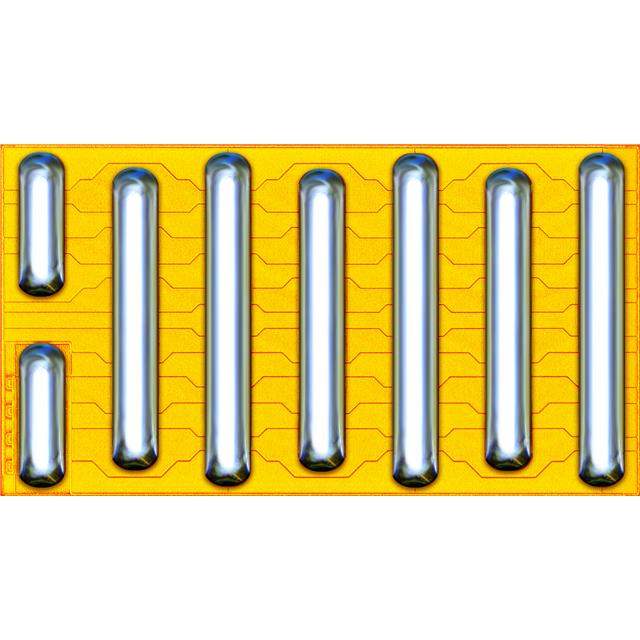

EPC2218A

Active

EPC

TRANS GAN 80V .0032OHM AECQ101

Search across all available documentation for this part.

Active

EPC

TRANS GAN 80V .0032OHM AECQ101

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EPC2218A	EPC2218 Series

Current - Continuous Drain (Id) @ 25°C	60 A	60 A
Drain to Source Voltage (Vdss)	80 V	80 V
Drive Voltage (Max Rds On, Min Rds On)	5 V	5 V
FET Type	N-Channel	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	13.6 nC	13.6 nC
Grade	Automotive	Automotive
Input Capacitance (Ciss) (Max) @ Vds	1570 pF	1570 pF
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Die	Die
Qualification	AEC-Q101	AEC-Q101
Rds On (Max) @ Id, Vgs	3.2 mOhm	3.2 mOhm
Supplied Contents	-	Board(s)
Supplier Device Package	Die	Die
Technology	GaNFET (Gallium Nitride)	GaNFET (Gallium Nitride)
Type	-	Power Management
Utilized IC / Part	-	EPC2218
Vgs (Max) [Max]	6 V	6 V
Vgs (Max) [Min]	-4 V	-4 V
Vgs(th) (Max) @ Id	2.5 V	2.5 V

DEV BD 1/2BRIDGE PARALEL EPC2218

Part	Supplied Contents	Utilized IC / Part	Type	Rds On (Max) @ Id, Vgs	Current - Continuous Drain (Id) @ 25°C	Operating Temperature [Max]	Operating Temperature [Min]	Drive Voltage (Max Rds On, Min Rds On)	Technology	Supplier Device Package	Drain to Source Voltage (Vdss)	Vgs (Max) [Max]	Vgs (Max) [Min]	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type	Gate Charge (Qg) (Max) @ Vgs [Max]	Grade	Vgs(th) (Max) @ Id	Qualification	FET Type	Package / Case
EPC EPC90135	Board(s)	EPC2218	Power Management
EPC EPC2218A				3.2 mOhm	60 A	150 °C	-40 °C	5 V	GaNFET (Gallium Nitride)	Die	80 V	6 V	-4 V	1570 pF	Surface Mount	13.6 nC	Automotive	2.5 V	AEC-Q101	N-Channel	Die
