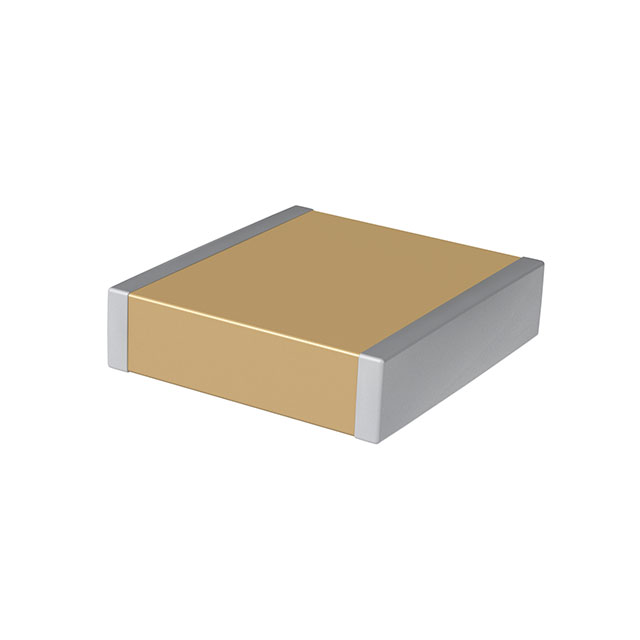

C4540H154JCGACT100

Active

KEMET

CAP CER 0.15UF 500V C0G/NP0 SMD

Search across all available documentation for this part.

Active

KEMET

CAP CER 0.15UF 500V C0G/NP0 SMD

Technical Specifications

Parameters and characteristics for this part

Specification	C4540H154JCGACT100

Applications	Downhole
Capacitance	0.15 ÁF
Features	Low ESL, High Temperature, High Voltage
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard SMD
Temperature Coefficient	NP0, C0G
Thickness (Max) [Max]	0.106 "
Thickness (Max) [Max]	2.7 mm
Tolerance	5 %
Voltage - Rated	500 V

Part	Voltage - Rated	Voltage - Rated	Thickness (Max) [Max]	Thickness (Max) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Package / Case	Capacitance	Applications	Features	Temperature Coefficient
KEMET C4540H683JDGACT050	1 kV	1000 V	0.106 "	2.7 mm	MLCC Surface Mount	-55 °C	200 °C	5 %	Nonstandard SMD	0.068 µF	Downhole	High Temperature High Voltage Low ESL	C0G NP0
KEMET C4540H104JBGACT050		630 V	0.106 "	2.7 mm	MLCC Surface Mount	-55 °C	200 °C	5 %	Nonstandard SMD	100000 pF	Downhole	High Temperature High Voltage Low ESL	C0G NP0
KEMET C4540H683KGGWCT050	2 kV	2000 V	0.106 "	2.7 mm	MLCC Surface Mount	-55 °C	200 °C	10 %	Nonstandard SMD	0.068 µF	Downhole	High Temperature High Voltage Low ESL	C0G NP0
KEMET C4540H154JCGACT100		500 V	0.106 "	2.7 mm	MLCC Surface Mount	-55 °C	200 °C	5 %	Nonstandard SMD	0.15 ÁF	Downhole	High Temperature High Voltage Low ESL	C0G NP0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.15 µF ±5% 500V Ceramic Capacitor C0G, NP0 Nonstandard SMD
