76202WS 008100

Active

Belden Inc.

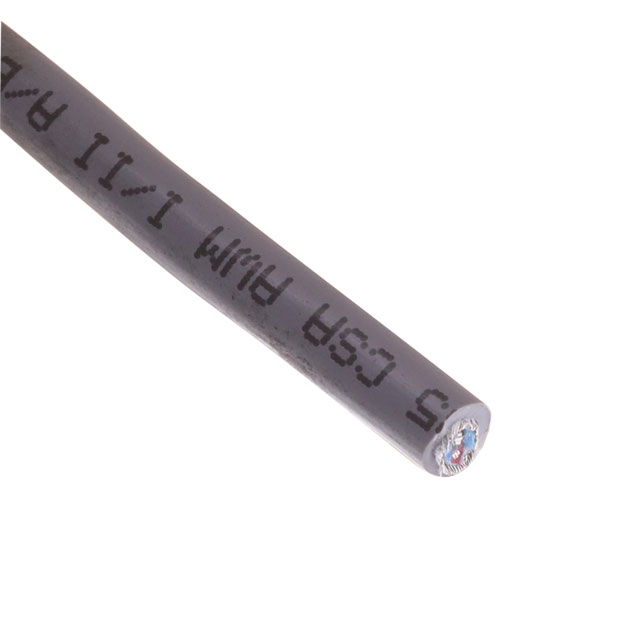

CABLE 2CON 24AWG CHROM SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2CON 24AWG CHROM SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	76202WS 008100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	10
Conductor Strand [diameter]	34 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	4.88 mm
Jacket (Insulation) Diameter [diameter]	0.192 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Spiral
Voltage	300 V
Wire Gauge	24 AWG

Part	Shield Coverage	Length [x]	Length [x]	Cable Type	Conductor Strand [diameter]	Conductor Strand [custom]	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Jacket (Insulation) Material	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Number of Conductors	Conductor Insulation	Features	Jacket Color	Wire Gauge
Belden Inc. 76202WS 008100	90 % 100 %	30.5 m	100 ft	Multi-Conductor	34 AWG	10	Aluminum Copper Tinned	0.04 in	1.016 mm	Copper Tinned	Poly-Vinyl Chloride (PVC)	Foil Spiral	4.88 mm	0.192 in	300 V	2	Poly-Vinyl Chloride (PVC)	Oil Resistant	Chrome	24 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 1.24

General part information

2 Conductor Multi-Conductor Cable Chrome 24 AWG Foil, Spiral 100.0' (30.5m)

Technical documentation and resources

No documents available
