EVALTSM1052

Obsolete

STMicroelectronics

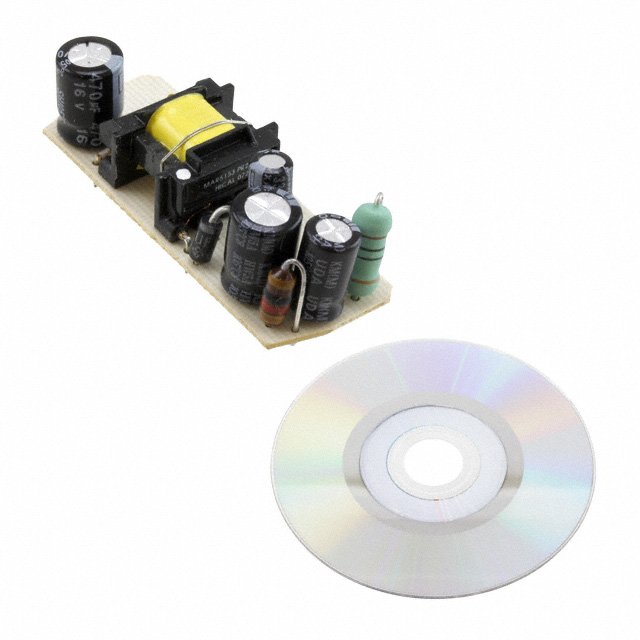

EVAL BOARD FOR TSM1052 VIPER12A

Search across all available documentation for this part.

Obsolete

STMicroelectronics

EVAL BOARD FOR TSM1052 VIPER12A

Technical Specifications

Parameters and characteristics for this part

Specification	EVALTSM1052

Contents	Board(s)
Current - Output	600 mA
Frequency - Switching	60 kHz
Main Purpose	AC/DC, Primary and Secondary Side
Outputs and Type	1 Isolated Output
Power - Output	3 W
Regulator Topology	Flyback
Utilized IC / Part	TSM1052, VIPer12A
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5.1 V

Part	Power - Output	Outputs and Type	Contents	Main Purpose	Regulator Topology	Frequency - Switching	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output	Utilized IC / Part	Voltage - Output
STMicroelectronics EVALTSM1052	3 W	1 Isolated Output	Board(s)	AC/DC Primary and Secondary Side	Flyback	60 kHz	90 VAC	264 VAC	600 mA	TSM1052 VIPer12A	5.1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

TSM1052, VIPer12A VIPER™ 1 Isolated Output AC/DC, Primary and Secondary Side Evaluation Board
