842-084-555-204
ActiveEDAC Inc.

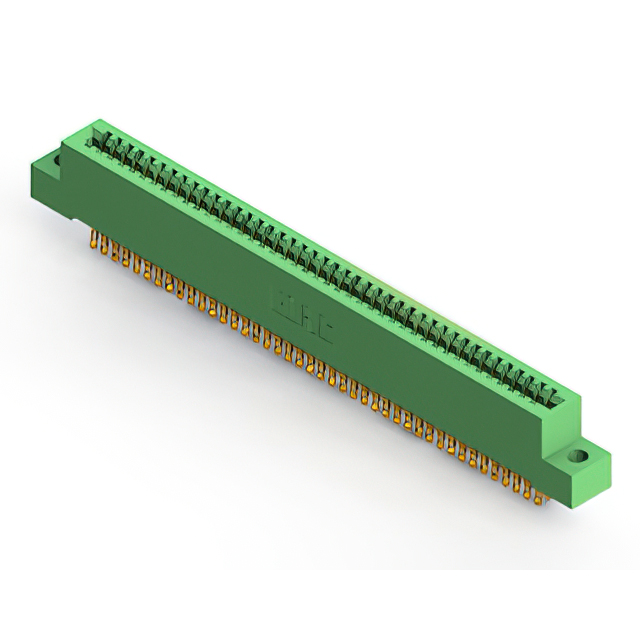

CONN EDGE DUAL FMALE 84POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-084-555-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 84 |
| Number of Positions/Bay/Row [custom] | 42 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
842-084 Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Features | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Mounting Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Color | Pitch [x] | Pitch [x] | Contact Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Contact Material | Read Out | Termination Rows | Termination | Gender | Material - Insulation | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 125 °C | -40 °C | Non Specified - Dual Edge | Card Extender | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Board Edge Straddle Mount | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Green | 2.54 mm | 0.1 in | Cantilever | Gold | 10 Áin | 0.25 Ám | 84 | Copper Alloy | Dual | 2 | Solder | Female | Diallyl Phthalate (DAP) | 42 |
EDAC Inc. | 125 °C | -40 °C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Through Hole | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Green | 2.54 mm | 0.1 in | Cantilever | Gold | 10 Áin | 0.25 Ám | 84 | Copper Alloy | Dual | 2 | Solder | Female | Diallyl Phthalate (DAP) | 42 | |
EDAC Inc. | 125 °C | -40 °C | Non Specified - Dual Edge | Card Extender | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Board Edge Straddle Mount | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Green | 2.54 mm | 0.1 in | Cantilever | Gold | 10 Áin | 0.25 Ám | 84 | Copper Alloy | Dual | 2 | Solder | Female | Diallyl Phthalate (DAP) | 42 |
EDAC Inc. | 125 °C | -40 °C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Green | 2.54 mm | 0.1 in | Cantilever | Gold | 10 Áin | 0.25 Ám | 84 | Copper Alloy | Dual | 2 | Wire Wrap | Female | Diallyl Phthalate (DAP) | 42 | |||
EDAC Inc. | 125 °C | -40 °C | Non Specified - Dual Edge | Card Extender | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Board Edge Straddle Mount | 4-40 Flush Mount Threaded Insert Top Opening | Green | 2.54 mm | 0.1 in | Cantilever | Gold | 10 Áin | 0.25 Ám | 84 | Copper Alloy | Dual | 2 | Solder | Female | Diallyl Phthalate (DAP) | 42 | ||
EDAC Inc. | 125 °C | -40 °C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Through Hole | Flush Mount M3 Threaded Insert Top Opening | Green | 2.54 mm | 0.1 in | Cantilever | Gold | 10 Áin | 0.25 Ám | 84 | Copper Alloy | Dual | 2 | Solder | Female | Diallyl Phthalate (DAP) | 42 | |||
EDAC Inc. | 125 °C | -40 °C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Green | 2.54 mm | 0.1 in | Cantilever | Gold | 10 Áin | 0.25 Ám | 84 | Copper Alloy | Dual | 2 | Solder | Female | Diallyl Phthalate (DAP) | 42 | |||
EDAC Inc. | 125 °C | -40 °C | Non Specified - Dual Edge | Card Extender | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Board Edge Straddle Mount | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Green | 2.54 mm | 0.1 in | Cantilever | Gold | 10 Áin | 0.25 Ám | 84 | Copper Alloy | Dual | 2 | Solder | Female | Diallyl Phthalate (DAP) | 42 |
EDAC Inc. | 125 °C | -40 °C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Through Hole Right Angle | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Green | 2.54 mm | 0.1 in | Cantilever | Gold | 10 Áin | 0.25 Ám | 84 | Copper Alloy | Dual | 2 | Solder | Female | Diallyl Phthalate (DAP) | 42 | |
EDAC Inc. | 125 °C | -40 °C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Through Hole | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Green | 2.54 mm | 0.1 in | Cantilever | Gold | 10 Áin | 0.25 Ám | 84 | Copper Alloy | Dual | 2 | Wire Wrap | Female | Diallyl Phthalate (DAP) | 42 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
842-084 Series
84 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
