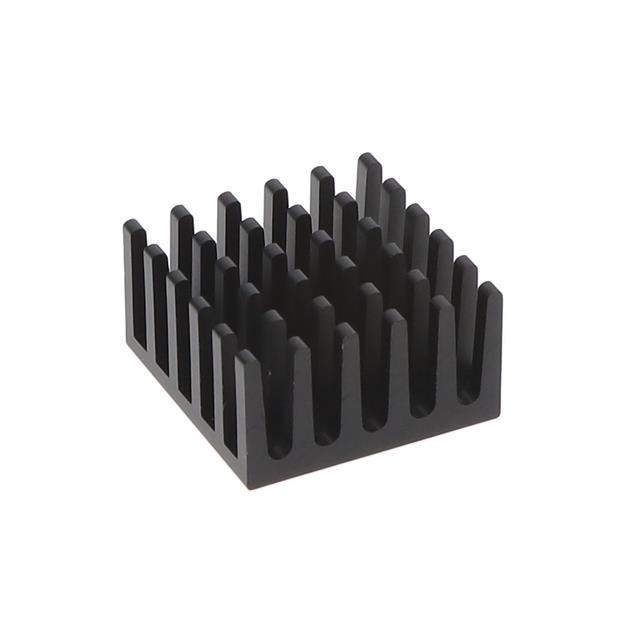

624-45AB

Active

Wakefield-Vette

HEATSINK CPU 21MM SQ W/OUT ADH

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK CPU 21MM SQ W/OUT ADH

Technical Specifications

Parameters and characteristics for this part

Specification	624-45AB

Attachment Method	Thermal Tape, Adhesive (Not Included)
Fin Height	11.43 mm
Fin Height	0.45 in
Length	0.827 in
Length	21 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Square, Pin Fins
Thermal Resistance @ Forced Air Flow	200 LFM, 15 °C/W
Type	Top Mount
Width [y]	21 mm
Width [y]	0.827 in

Part	Type	Attachment Method	Thermal Resistance @ Forced Air Flow	Length	Length	Material Finish	Fin Height	Fin Height	Package Cooled	Material	Width [y]	Width [y]	Shape
Wakefield-Vette 624-45ABT4E	Top Mount	Thermal Tape Adhesive (Included)	15 °C/W 200 LFM	0.827 in	21 mm	Black Anodized	11.43 mm	0.45 in	BGA	Aluminum	21 mm	0.827 in	Pin Fins Square
Wakefield-Vette 624-45ABT3	Top Mount	Thermal Tape Adhesive (Included)	15 °C/W 200 LFM	0.827 in	21 mm	Black Anodized	11.43 mm	0.45 in	BGA	Aluminum	21 mm	0.827 in	Pin Fins Square
Wakefield-Vette 624-45AB	Top Mount	Thermal Tape Adhesive (Not Included)	15 °C/W 200 LFM	0.827 in	21 mm	Black Anodized	11.43 mm	0.45 in	BGA	Aluminum	21 mm	0.827 in	Pin Fins Square

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink BGA Aluminum Top Mount
