FS225R17KE3BOSA1

NRND

Infineon Technologies

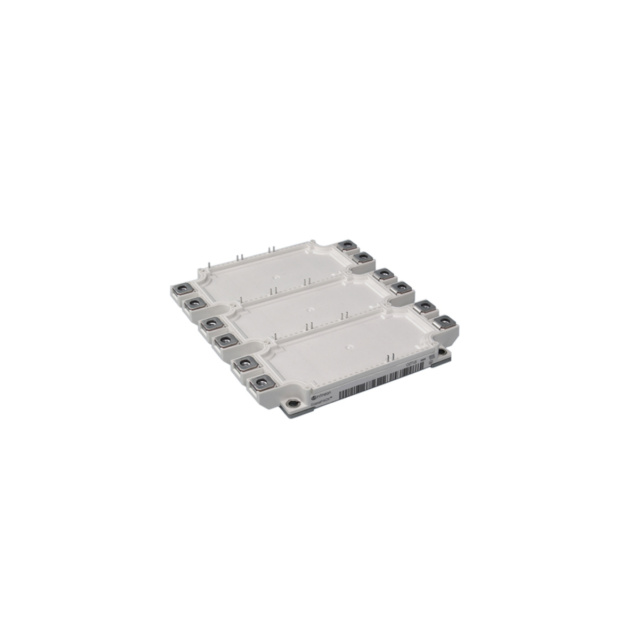

THE FS225R17KE3 IS A SIXPACK IGBT3 - E3 MODULE IN A ECONOPACK™ + B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1700 V AND 225 A.

Search across all available documentation for this part.

NRND

Infineon Technologies

THE FS225R17KE3 IS A SIXPACK IGBT3 - E3 MODULE IN A ECONOPACK™ + B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1700 V AND 225 A.

Technical Specifications

Parameters and characteristics for this part

Specification	FS225R17KE3BOSA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	340 A
Current - Collector Cutoff (Max) [Max]	3 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	20.5 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	1400 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.45 V
Voltage - Collector Emitter Breakdown (Max)	1700 V

Part	Configuration	NTC Thermistor	Input Capacitance (Cies) @ Vce	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max)	Input	Package / Case	Supplier Device Package	Vce(on) (Max) @ Vge, Ic	IGBT Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
Infineon Technologies FS225R17OE4PBOSA1
Infineon Technologies FS225R17KE3BOSA1	Three Phase Inverter		20.5 nF	340 A	1400 W	3 mA	1700 V	Standard	Module	Module	2.45 V	Trench Field Stop	125 °C	-40 °C	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

EconoPACK™ + B-series1700V sixpackIGBT modulewith Trench/Fieldstop IGBT3 and Emitter Controlled 3 diode
