Q-0J0200005006i

Active

Amphenol Custom Cable

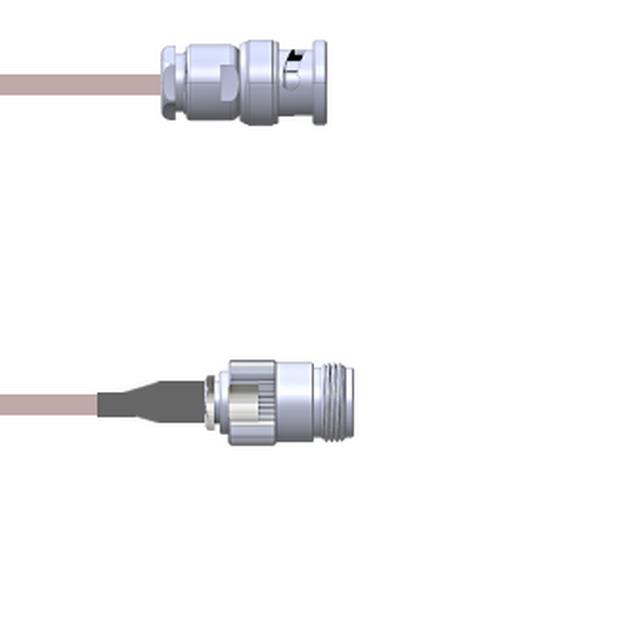

CBL ASSY BNC-NTYPE PLUG-JACK 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0J0200005006i

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE PLUG-JACK 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0J0200005006i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-0J0200 Series

Part	2nd Connector Mounting Type	Color	1st Connector	Frequency - Max [Max]	Features	2nd Connector	1st Contact Gender	Length	Length	Cable Type	Style	2nd Contact Gender	1st Connector Mounting Type	Overall Impedance	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0J0200003003i	Free Hanging (In-Line)	Black	BNC Plug	4 GHz	Shielded	N-Type Jack	Male	3 in	76.2 mm	RG-174	BNC to N-Type	Female	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0J0200005006i	Free Hanging (In-Line)	Copper	BNC Plug	4 GHz	Shielded	N-Type Jack	Male	6 in	152.4 mm	RG-316	BNC to N-Type	Female	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0J0200003048i	Free Hanging (In-Line)	Black	BNC Plug	4 GHz	Shielded	N-Type Jack	Male	48 in	1200 mm	RG-174	BNC to N-Type	Female	Free Hanging (In-Line)	50 Ohms	4 ft
Amphenol Custom Cable Q-0J0200005002M	Free Hanging (In-Line)	Copper	BNC Plug	4 GHz	Shielded	N-Type Jack	Male	78.7 in	2 m	RG-316	BNC to N-Type	Female	Free Hanging (In-Line)	50 Ohms	6.6 ft
Amphenol Custom Cable Q-0J0200005001M	Free Hanging (In-Line)	Copper	BNC Plug	4 GHz	Shielded	N-Type Jack	Male	39.4 in	1 m	RG-316	BNC to N-Type	Female	Free Hanging (In-Line)	50 Ohms	3.3 ft
Amphenol Custom Cable Q-0J0200003072i	Free Hanging (In-Line)	Black	BNC Plug	4 GHz	Shielded	N-Type Jack	Male	72 in	1.8 m	RG-174	BNC to N-Type	Female	Free Hanging (In-Line)	50 Ohms	6 ft
Amphenol Custom Cable Q-0J0200003018i	Free Hanging (In-Line)	Black	BNC Plug	4 GHz	Shielded	N-Type Jack	Male			RG-174	BNC to N-Type	Female	Free Hanging (In-Line)	50 Ohms		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0J0200003060i	Free Hanging (In-Line)	Black	BNC Plug	4 GHz	Shielded	N-Type Jack	Male	5 '	1.5 m	RG-174	BNC to N-Type	Female	Free Hanging (In-Line)	50 Ohms	5 ft
Amphenol Custom Cable Q-0J0200005060i	Free Hanging (In-Line)	Copper	BNC Plug	4 GHz	Shielded	N-Type Jack	Male	5 '	1.5 m	RG-316	BNC to N-Type	Female	Free Hanging (In-Line)	50 Ohms	5 ft
Amphenol Custom Cable Q-0J0200003003M	Free Hanging (In-Line)	Black	BNC Plug	4 GHz	Shielded	N-Type Jack	Male	118.1 in	3 m	RG-174	BNC to N-Type	Female	Free Hanging (In-Line)	50 Ohms	9.8 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 67.13
		25	$ 65.83
		50	$ 64.53
		100	$ 63.23
		250	$ 61.93

Description

General part information

Q-0J0200 Series

Cable Assembly Coaxial BNC to N-Type RG-316 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
