8KH2-0723-0500

Active

3M (TC)

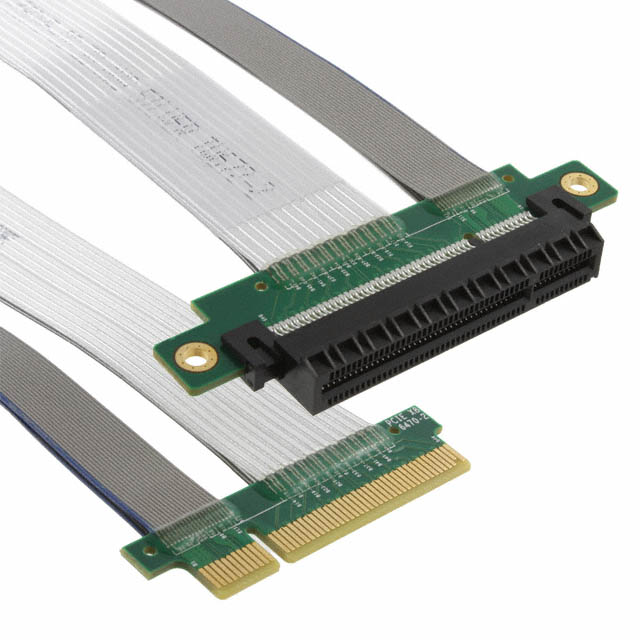

RIBBON CABLE, PCI EXPRESS X8 PLUG TO PCI EXPRESS X8 RECEPTACLE, 98 POSITIONS, 19.7 ", 500 MM

Search across all available documentation for this part.

Active

3M (TC)

RIBBON CABLE, PCI EXPRESS X8 PLUG TO PCI EXPRESS X8 RECEPTACLE, 98 POSITIONS, 19.7 ", 500 MM

Technical Specifications

Parameters and characteristics for this part

Part	Length [x]	Length [x]	Color	Connector Type	Features	Usage	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Cable Connectors	Gender	Cable Type	Number of Positions	Length [x]	Current - Max/Contact
3M (TC) 8KH2-0723-0500	1.64 ft	500 mm	Silver	Receptacle to Card Edge	Extender	Internal	Shielded	-20 C	80 C	30 AWG	PCIe x8	Female to Male	Flat Twin Axial	98
3M (TC) 8KH2-0723-0250	9.84 in	250 mm	Silver	Receptacle to Card Edge	Extender	Internal	Shielded	-20 C	80 C	30 AWG	PCIe x8	Female to Male	Flat Twin Axial	98	9.843 in
3M (TC) 8KH2-0723-0150	0.492 ft	150 mm	Silver	Receptacle to Card Edge		Internal	Shielded	-20 C	85 °C	30 AWG	PCIe x8	Female to Male	Flat Twin Axial	98	5.906 "	1.1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

98 Position PCIe x8 Receptacle to Card Edge 1.64' (500.00mm) Silver Shielded
