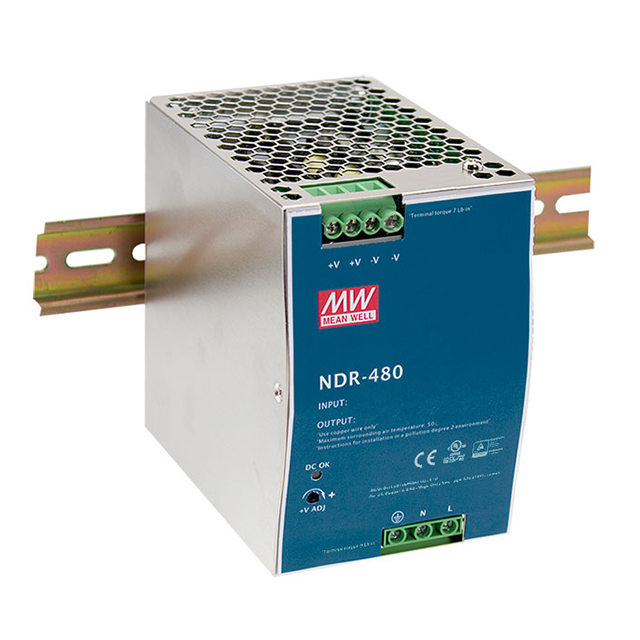

NDR-480-48

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUPPLY 48V 480W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUPPLY 48V 480W

Technical Specifications

Parameters and characteristics for this part

Specification	NDR-480-48

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	90 VAC
Applications	Industrial, ITE (Commercial)
Current - Output (Max) [Max]	10 A
DC Voltage - Input (Max) [Max]	370 V
DC Voltage - Input (Min) [Min]	127 V
Efficiency	92.5 %
Features	PFC, Adjustable Output, Universal Input
Input Type	AC or DC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	480 W
Size / Dimension [x]	5.06 in
Size / Dimension [x]	128.5 mm
Size / Dimension [y]	85.5 mm
Size / Dimension [y]	3.37 "
Size / Dimension [z]	125.2 mm
Size / Dimension [z]	4.93 in
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	DC Voltage - Input (Max) [Max]	Features	Minimum Load Required	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Power (Watts)	Input Type	Voltage - Isolation	Voltage - Output 1	DC Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Number of Outputs	Current - Output (Max) [Max]	Applications
MEAN WELL USA Inc. NDR-480-48	370 V	Adjustable Output PFC Universal Input		85.5 mm	5.06 in	125.2 mm	3.37 "	4.93 in	128.5 mm	92.5 %	480 W	AC or DC	3000 V	48 V	127 V	-20 °C	70 °C	90 VAC	264 VAC	1	10 A	Industrial ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 48V 480W
