EDAC Inc.

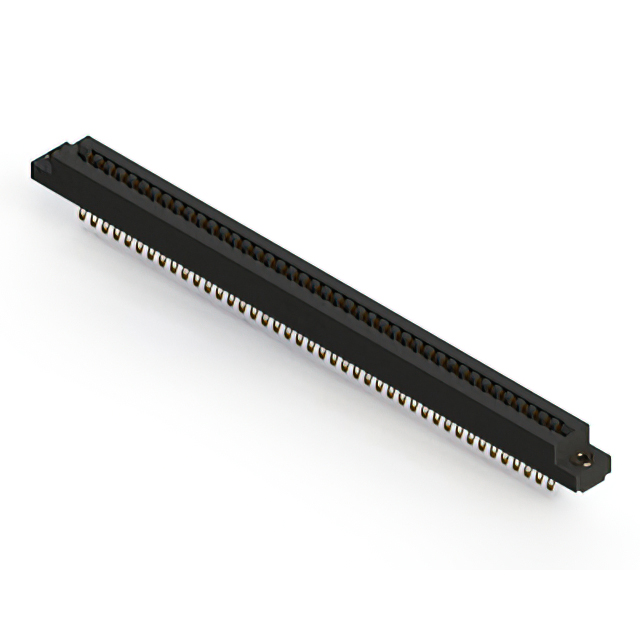

CONN EDGE DUAL FMALE 84POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-084-555-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 84POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-084-555-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Extender
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	84
Number of Positions/Bay/Row [custom]	42
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

857-084 Series

...

Part	Termination	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Material	Card Type	Termination Rows	Gender	Number of Rows	Number of Positions/Bay/Row [custom]	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Flange Feature	Flange Feature	Flange Feature	Pitch [x]	Pitch [x]	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Color	Contact Type	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 857-084-542-212	Wire Wrap	10 Áin	0.25 Ám	Through Hole	Copper Alloy	Non Specified - Dual Edge	2	Female	2	42	84	125 °C	-40 °C	Dual	Side Mount Opening Unthreaded	3.25 mm	0.128 in	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	Semi Bellows
EDAC Inc. 857-084-555-203	Solder	10 Áin	0.25 Ám	Board Edge Straddle Mount	Copper Alloy	Non Specified - Dual Edge	2	Female	2	42	84	125 °C	-40 °C	Dual	Floating Bobbin Flush Mount			0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	Semi Bellows	0.116 in	2.95 mm	Card Extender
EDAC Inc. 857-084-400-207	Solder Eyelet(s)			Through Hole	Copper Alloy	Non Specified - Dual Edge	2	Female	2	42	84	125 °C	-40 °C	Dual	Flush Mount M3 Threaded Insert Top Opening			0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Black	Semi Bellows
EDAC Inc. 857-084-540-212	Wire Wrap	10 Áin	0.25 Ám	Through Hole	Copper Alloy	Non Specified - Dual Edge	2	Female	2	42	84	125 °C	-40 °C	Dual	Side Mount Opening Unthreaded	3.25 mm	0.128 in	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	Semi Bellows
EDAC Inc. 857-084-455-212	Solder			Board Edge Straddle Mount	Copper Alloy	Non Specified - Dual Edge	2	Female	2	42	84	125 °C	-40 °C	Dual	Side Mount Opening Unthreaded	3.25 mm	0.128 in	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Black	Semi Bellows			Card Extender
EDAC Inc. 857-084-522-202	Solder	10 Áin	0.25 Ám	Through Hole	Copper Alloy	Non Specified - Dual Edge	2	Female	2	42	84	125 °C	-40 °C	Dual	Flush Mount Top Opening Unthreaded			0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	Semi Bellows	0.128 "	3.25 mm
EDAC Inc. 857-084-540-203	Wire Wrap	10 Áin	0.25 Ám	Through Hole	Copper Alloy	Non Specified - Dual Edge	2	Female	2	42	84	125 °C	-40 °C	Dual	Floating Bobbin Flush Mount			0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	Semi Bellows	0.116 in	2.95 mm
EDAC Inc. 857-084-560-201	Solder	10 Áin	0.25 Ám	Board Edge Straddle Mount	Copper Alloy	Non Specified - Dual Edge	2	Female	2	42	84	125 °C	-40 °C	Dual				0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	Semi Bellows			Card Extender
EDAC Inc. 857-084-520-203	Solder	10 Áin	0.25 Ám	Through Hole	Copper Alloy	Non Specified - Dual Edge	2	Female	2	42	84	125 °C	-40 °C	Dual	Floating Bobbin Flush Mount			0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	Semi Bellows	0.116 in	2.95 mm
EDAC Inc. 857-084-540-201	Wire Wrap	10 Áin	0.25 Ám	Through Hole	Copper Alloy	Non Specified - Dual Edge	2	Female	2	42	84	125 °C	-40 °C	Dual				0.156 in	3.96 mm	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	Semi Bellows

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 146.47
Newark	Each	1	$ 175.77
		100	$ 107.18
		250	$ 96.82
		500	$ 86.32
		1000	$ 70.13

Description

General part information

857-084 Series

84 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
