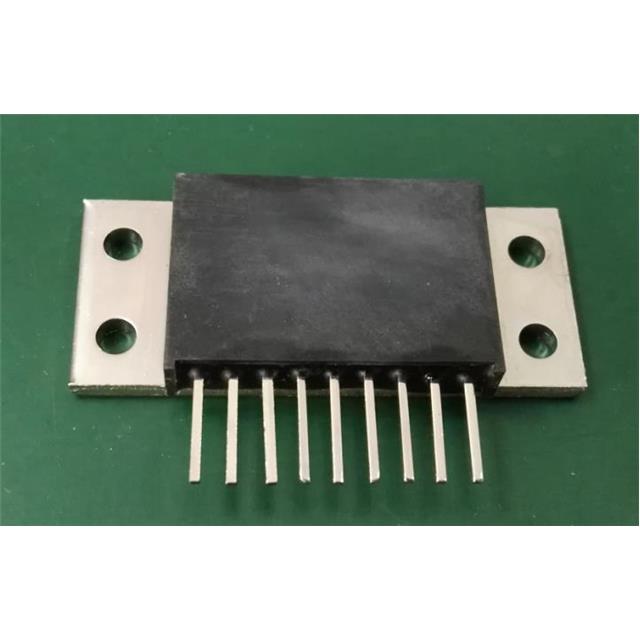

150CMQ045

Active

SMC Diode Solutions

DIODE MOD SCHOTT 45V 75A TO249

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE MOD SCHOTT 45V 75A TO249

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	150CMQ045	150CMQ Series

Current - Average Rectified (Io) (per Diode)	75 A	75 A
Current - Reverse Leakage @ Vr	5 mA	5 mA
Diode Configuration	1 Pair Common Cathode	1 Pair Common Cathode
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature - Junction [Max]	150 °C	150 °C
Operating Temperature - Junction [Min]	-55 °C	-55 °C
Package / Case	D-60, TO-249AA (Modified)	D-60, TO-249AA (Modified)
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	TO-249	TO-249
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	45 V	35 - 45 V
Voltage - Forward (Vf) (Max) @ If [Max]	670 mV	670 mV

DIODE MOD SCHOTT 35V 75A TO249

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If [Max]	Package / Case	Mounting Type	Speed	Supplier Device Package	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Current - Average Rectified (Io) (per Diode)	Diode Configuration
SMC Diode Solutions 150CMQ035	150 °C	-55 °C	670 mV	D-60, TO-249AA (Modified)	Chassis Mount	200 mA, 500 ns	TO-249	5 mA	35 V	Schottky	75 A	1 Pair Common Cathode
SMC Diode Solutions 150CMQ045	150 °C	-55 °C	670 mV	D-60, TO-249AA (Modified)	Chassis Mount	200 mA, 500 ns	TO-249	5 mA	45 V	Schottky	75 A	1 Pair Common Cathode
SMC Diode Solutions 150CMQ040	150 °C	-55 °C	670 mV	D-60, TO-249AA (Modified)	Chassis Mount	200 mA, 500 ns	TO-249	5 mA	40 V	Schottky	75 A	1 Pair Common Cathode

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	24	$ 33.14

General part information

Diode Array 1 Pair Common Cathode 45 V 75A Chassis Mount TO-249AA (Modified), D-60
