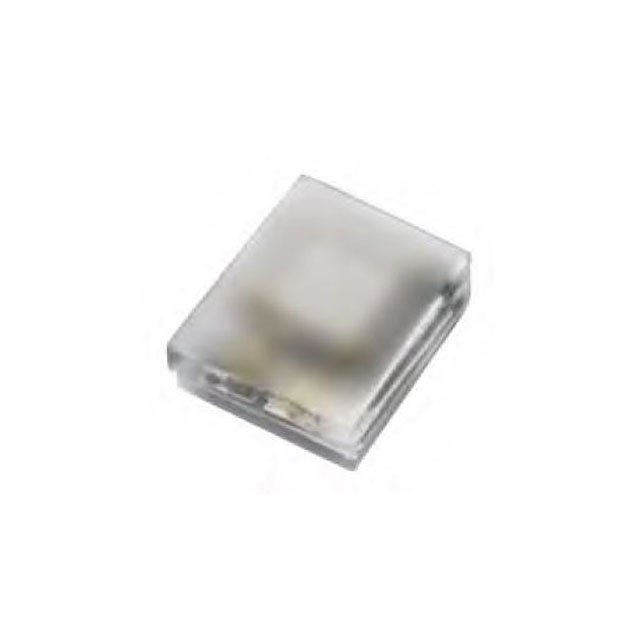

ELUA2016OGB-P6070Q43040020-VA1M
ActiveEverlight Electronics Co Ltd
UV 2016 PACKAGE, 0.08W 365NM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ELUA2016OGB-P6070Q43040020-VA1M
ActiveEverlight Electronics Co Ltd
UV 2016 PACKAGE, 0.08W 365NM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ELUA2016OGB-P6070Q43040020-VA1M |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 30 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 2-SMD, No Lead |
| Type | Ultraviolet (UV) |
| Voltage - Forward (Vf) (Typ) | 3.5 V |
| Wavelength | 365 nm |
| Wavelength [Max] | 370 nm |
| Wavelength [Min] | 360 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.71 | |
| 10 | $ 1.09 | |||
| 100 | $ 0.77 | |||
| 500 | $ 0.64 | |||
| 1000 | $ 0.60 | |||
| Digi-Reel® | 1 | $ 1.71 | ||
| 10 | $ 1.09 | |||
| 100 | $ 0.77 | |||
| 500 | $ 0.64 | |||
| 1000 | $ 0.60 | |||
| Tape & Reel (TR) | 2000 | $ 0.57 | ||
| 4000 | $ 0.55 | |||
| 6000 | $ 0.53 | |||
| 10000 | $ 0.52 | |||
| 14000 | $ 0.51 | |||
Description
General part information
ELUA2016 Series
Ultraviolet (UV) Emitter 365nm (360nm ~ 370nm) 3.5V 30mA 2-SMD, No Lead
