112515-75

Active

Amphenol RF

CONN BNC RCPT STR 75 OHM PCB

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC RCPT STR 75 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	112515-75

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Dielectric Material	Housing Color	Mounting Type	Body Finish	Impedance	Shield Termination	Fastening Type	Center Contact Material	Body Material	Insertion Loss	Frequency - Max [Max]	Connector Type	Connector Style	Number of Ports	Mating Cycles	Contact Termination	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating
Amphenol RF 112515-75	Polytetrafluoroethylene (PTFE)	Silver	Through Hole	Nickel	75 Ohms	Solder	Bayonet Lock	Phosphor Bronze	Brass	0.2 dB	4 GHz	Female Socket Jack	BNC	1	500	Solder	Gold	-65 ░C	165 °C	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

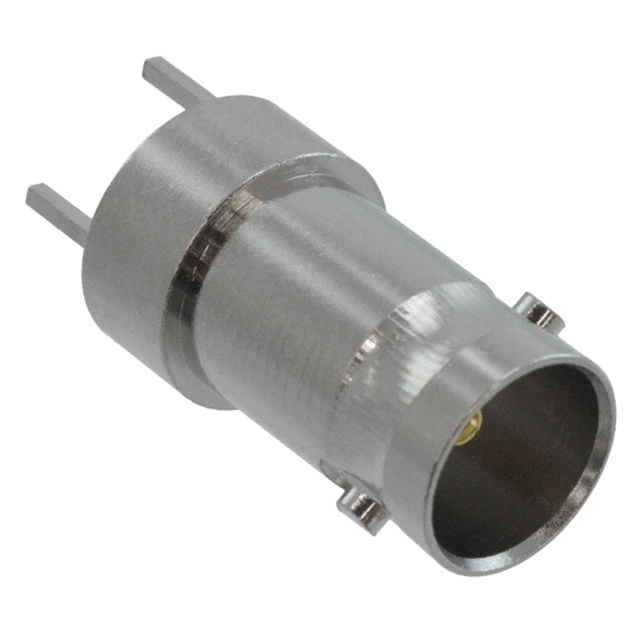

BNC Connector Jack, Female Socket 75 Ohms Through Hole Solder
