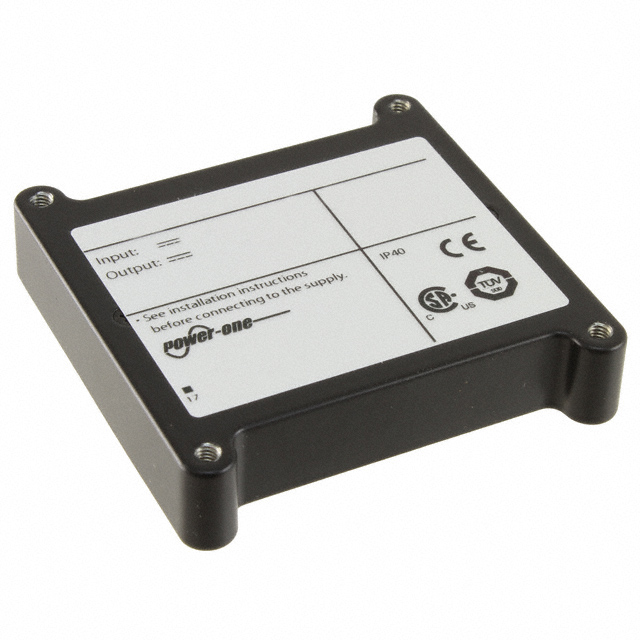

24IBX15-50-0G

Active

Bel Power Solutions

DC DC CONVERTER 50-160V

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 50-160V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	24IBX15-50-0G	24IBX15 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	1.6 A	1.6 A
Efficiency	93 %	93 %
Features	UVLO, OTP	UVLO, OTP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	17-DIP Module	17-DIP Module
Package / Case	10 Leads	10 Leads
Size / Dimension [x]	2.16 in	2 - 2.16 in
Size / Dimension [x]	54.9 mm	50.8 - 54.9 mm
Size / Dimension [y]	54.7 mm	41.2 - 54.7 mm
Size / Dimension [y]	2.15 "	1.62 - 2.15 in
Size / Dimension [z]	11.5 mm	9.6 - 11.5 mm
Size / Dimension [z]	0.45 "	0.38 - 0.45 in
Type	Non-Isolated PoL Module, Conformal Coated	Non-Isolated PoL Module, Conformal Coated
Voltage - Input (Max) [Max]	160 V	160 V
Voltage - Input (Min) [Min]	15.4 V	15.4 V
Voltage - Output 1 [Max]	160 V	160 V
Voltage - Output 1 [Min]	50 V	50 V

DC DC CONVERTER 50-160V

Part	Mounting Type	Voltage - Input (Max) [Max]	Applications	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Type	Current - Output (Max) [Max]	Number of Outputs	Features	Voltage - Input (Min) [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Package / Case	Package / Case
Bel Power Solutions 24IBX15-50-0ZG	Through Hole	160 V	ITE (Commercial)	93 %	-40 °C	70 °C	9.6 mm	41.2 mm	50.8 mm	1.62 in	2 in	0.38 in	Conformal Coated, Non-Isolated PoL Module	1.6 A	1	OTP, UVLO	15.4 V	50 V	160 V	17-DIP Module	10 Leads
Bel Power Solutions 24IBX15-50-0G	Through Hole	160 V	ITE (Commercial)	93 %	-40 °C	70 °C	11.5 mm	54.7 mm	54.9 mm	2.15 "	2.16 in	0.45 "	Conformal Coated, Non-Isolated PoL Module	1.6 A	1	OTP, UVLO	15.4 V	50 V	160 V	17-DIP Module	10 Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module, Conformal Coated DC DC Converter 1 Output 50 ~ 160V 1.6A 15.4V - 160V Input

Technical documentation and resources

No documents available
