BBD-106-T-A

Active

Samtec Inc.

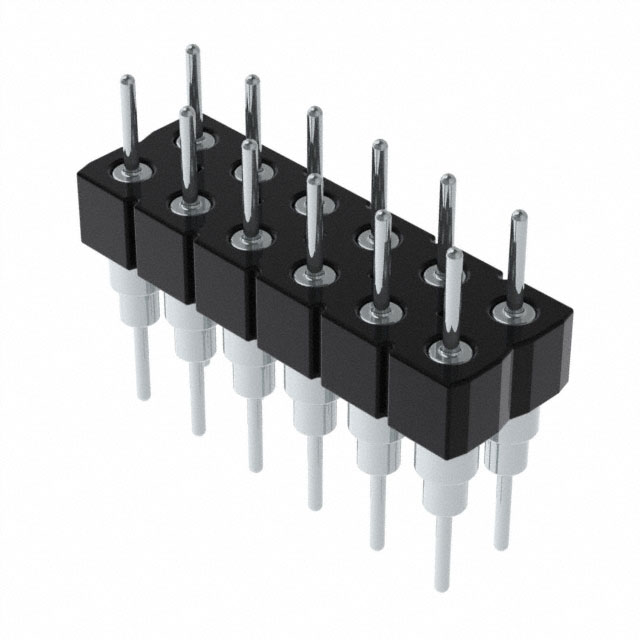

CONN HEADER VERT 12POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BBD-106-T-A

Active

Samtec Inc.

CONN HEADER VERT 12POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BBD-106-T-A

Connector Type	Header
Contact Finish - Post	Nickel
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	0.125 in
Contact Length - Mating	3.18 mm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	5.35 mm
Insulation Height [z]	0.211 in
Insulation Material	Polyester, Glass Filled
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	11.68 mm
Overall Contact Length	0.46 "
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

BBD-106 Series

Part	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Contact Length - Mating	Contact Length - Mating	Shrouding	Contact Finish - Post	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Contact Shape	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Mounting Type	Insulation Color	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Insulation Height	Insulation Height	Connector Type	Overall Contact Length	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]
Samtec Inc. BBD-106-T-C	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	0.125 in	3.18 mm	Unshrouded	Nickel	All	0.835 in	21.21 mm	Circular	Male Pin	3.18 mm	0.125 in	Polyester Glass Filled	Through Hole	Black	Solder	-55 °C	125 °C	2	1.27 µm	50 µin	12	0.585 in	14.86 mm	Header
Samtec Inc. BBD-106-T-B	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	0.125 in	3.18 mm	Unshrouded	Nickel	All		0.585 in	Circular	Male Pin	3.18 mm	0.125 in	Polyester Glass Filled	Through Hole	Black	Solder	-55 °C	125 °C	2	1.27 µm	50 µin	12	0.335 "	8.51 mm	Header	14.86 mm
Samtec Inc. BBD-106-G-G	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	0.125 in	3.18 mm	Unshrouded	Nickel	All	0.835 in	21.21 mm	Circular	Male Pin	3.18 mm	0.125 in	Polyester Glass Filled	Through Hole	Black	Solder	-55 °C	125 °C	2	1.27 µm	50 µin	12	0.585 in	14.86 mm	Header		Gold	0.51 µm	20 µin
Samtec Inc. BBD-106-T-A	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	0.125 in	3.18 mm	Unshrouded	Nickel	All	0.46 "	11.68 mm	Circular	Male Pin	3.18 mm	0.125 in	Polyester Glass Filled	Through Hole	Black	Solder	-55 °C	125 °C	2	1.27 µm	50 µin	12			Header					5.35 mm	0.211 in
Samtec Inc. BBD-106-G-B	0.1 in	2.54 mm	2.54 mm	0.1 in	Push-Pull	0.125 in	3.18 mm	Unshrouded	Nickel	All		0.585 in	Circular	Male Pin	3.18 mm	0.125 in	Polyester Glass Filled	Through Hole	Black	Solder	-55 °C	125 °C	2	1.27 µm	50 µin	12	0.335 "	8.51 mm	Header	14.86 mm	Gold	0.51 µm	20 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	37	$ 2.65

Description

General part information

BBD-106 Series

Connector Header Through Hole 12 position 0.100" (2.54mm)
