299-87-306-10-001101

Active

PRECI-DIP SA

CONN IC DIP SOCKET 6POS GOLD

Search across all available documentation for this part.

Active

PRECI-DIP SA

CONN IC DIP SOCKET 6POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	299-87-306-10-001101

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	10 mOhm
Current Rating (Amps)	1 A
Features	Closed Frame
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	2
Number of Positions or Pins (Grid) [custom]	6
Number of Positions or Pins (Grid) [custom]	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length [x]	0.128 in
Termination Post Length [x]	3.24 mm
Type	0.3 "
Type	7.62 mm
Type	DIP

Part	Termination Post Length [x]	Termination Post Length [x]	Contact Material - Mating	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Features	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions or Pins (Grid)	Contact Resistance	Contact Finish - Post	Contact Material - Post [custom]	Material Flammability Rating	Type	Type	Type	Contact Finish Thickness - Mating	Housing Material	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
PRECI-DIP SA 299-87-636-10-002101	0.128 in	3.24 mm	Beryllium Copper	Gold	0.1 in	2.54 mm	1 A	Closed Frame	Solder	-55 °C	125 °C	36	10 mOhm	Tin	Brass	UL94 V-0	DIP	0.6 in	15.24 mm	Flash	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in
PRECI-DIP SA 299-87-312-10-001101	0.128 in	3.24 mm	Beryllium Copper	Gold	0.1 in	2.54 mm	1 A	Closed Frame	Solder	-55 °C	125 °C	2 6 12	10 mOhm	Tin	Brass	UL94 V-0	DIP	0.3 "	7.62 mm	Flash	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in
PRECI-DIP SA 299-87-306-10-001101	0.128 in	3.24 mm	Beryllium Copper	Gold	0.1 in	2.54 mm	1 A	Closed Frame	Solder	-55 °C	125 °C		10 mOhm	Tin	Brass	UL94 V-0	DIP	0.3 "	7.62 mm	Flash	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	2	6	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2982	$ 1.11

General part information

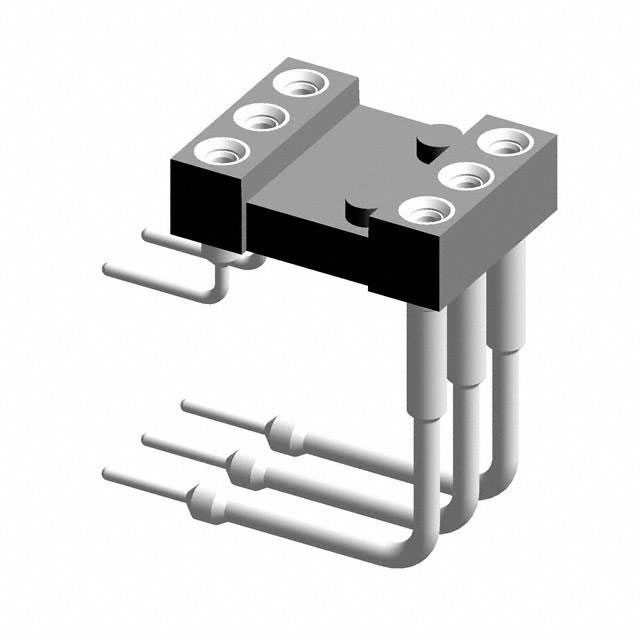

6 (2 x 3) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole, Right Angle, Horizontal
