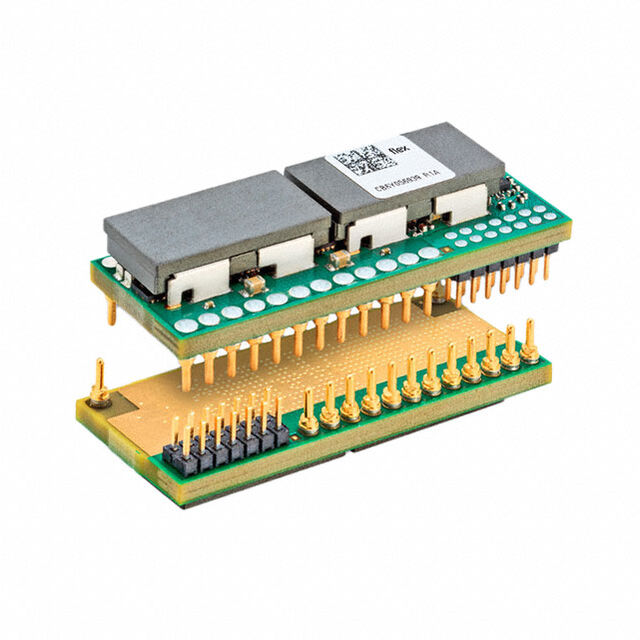

BMR4671010/001

Active

Flex Power Modules

DC DC CONVERTER 0.6-1.8V 216W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BMR4671010/001

Active

Flex Power Modules

DC DC CONVERTER 0.6-1.8V 216W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 72.74
		5	$ 72.17
		10	$ 71.60
		25	$ 69.33
	Tape & Reel (TR)	65	$ 65.92
		130	$ 61.37

Description

General part information

BMR467 Series

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 1.8V 120A 7.5V - 14V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMR4671010/001	BMR467 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA	CB, UL, IEC, TUV, CSA
Control Features	Active High, Enable	Active High, Enable
Current - Output (Max) [Max]	120 A	120 A
Efficiency	93.2 %	93.2 %
Features	PMBus™, Adjustable Output, Remote Sense	PMBus™, Adjustable Output, Remote Sense
Mounting Type	Surface Mount	Through Hole, Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-45 °C	-45 °C
Package / Case	28-SMD Module	26-SIP Module, 28-DIP Module, 28-SMD Module
Power (Watts)	216 W	216 W
Size / Dimension [x]	2 in	2 in
Size / Dimension [x]	50.8 mm	50.8 mm
Size / Dimension [y]	0.75 in	0.32 - 0.75 in
Size / Dimension [y]	19.1 mm	8.2 - 19.1 mm
Size / Dimension [z]	10.8 mm	10.4 - 19.1 mm
Size / Dimension [z]	0.43 "	0.41 - 0.75 in
Standard Number	62368-1	62368-1
Type	Non-Isolated PoL Module, Digital	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V	14 V
Voltage - Input (Min) [Min]	7.5 V	7.5 V
Voltage - Output 1 [Max]	1.8 V	1.8 V
Voltage - Output 1 [Min]	0.6 V	0.6 V

BMR467 Series

DC DC CONVERTER 0.6-1.8V 216W

Part	Package / Case	Voltage - Input (Max) [Max]	Type	Approval Agency	Efficiency	Applications	Features	Standard Number	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Current - Output (Max) [Max]	Mounting Type	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Power (Watts)	Number of Outputs
Flex Power Modules BMR4672110/001	26-SIP Module	14 V	Non-Isolated PoL Module, Digital	CB, CSA, IEC, TUV, UL	93.2 %	ITE (Commercial)	Adjustable Output, PMBus™, Remote Sense	62368-1	1.8 V	0.6 V	120 A	Through Hole	Active High, Enable	125 °C	-45 °C	8.2 mm	0.32 in	0.75 in	50.8 mm	19.1 mm	2 in	7.5 V	216 W	1
Flex Power Modules BMR4670010/001	28-DIP Module	14 V	Non-Isolated PoL Module, Digital	CB, CSA, IEC, TUV, UL	93.2 %	ITE (Commercial)	Adjustable Output, PMBus™, Remote Sense	62368-1	1.8 V	0.6 V	120 A	Through Hole	Active High, Enable	125 °C	-45 °C	19.1 mm	0.75 in	0.41 "	50.8 mm	10.4 mm	2 in	7.5 V	216 W	1
Flex Power Modules BMR4672010/001	26-SIP Module	14 V	Non-Isolated PoL Module, Digital	CB, CSA, IEC, TUV, UL	93.2 %	ITE (Commercial)	Adjustable Output, PMBus™, Remote Sense	62368-1	1.8 V	0.6 V	120 A	Through Hole	Active High, Enable	125 °C	-45 °C	8.2 mm	0.32 in	0.75 in	50.8 mm	19.1 mm	2 in	7.5 V	216 W	1
Flex Power Modules BMR4671010/001	28-SMD Module	14 V	Non-Isolated PoL Module, Digital	CB, CSA, IEC, TUV, UL	93.2 %	ITE (Commercial)	Adjustable Output, PMBus™, Remote Sense	62368-1	1.8 V	0.6 V	120 A	Surface Mount	Active High, Enable	125 °C	-45 °C	19.1 mm	0.75 in	0.43 "	50.8 mm	10.8 mm	2 in	7.5 V	216 W	1
