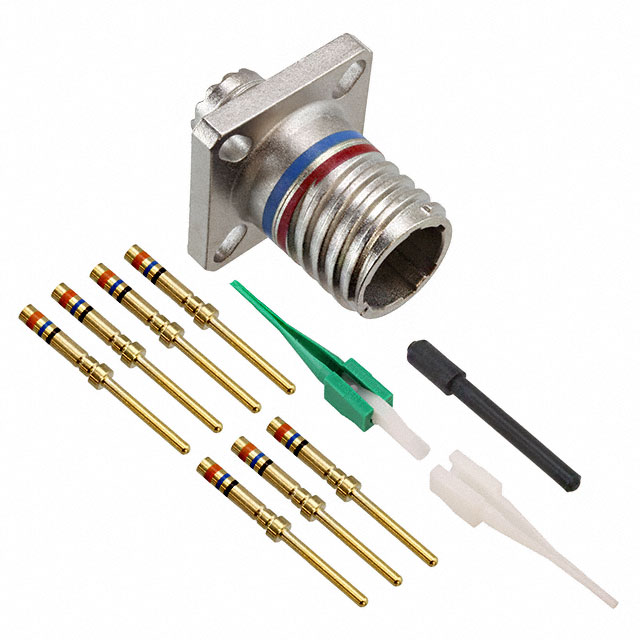

D38999/20MA35PN

Active

ITT Cannon, LLC

CONN RCPT MALE 6POS GOLD CRIMP

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT MALE 6POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20MA35PN

Applications	Aviation, Marine, Military
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Number of Positions	6
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Composite
Shell Finish	Electroless Nickel
Shell Material	Composite
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	9
Termination	Crimp

Part	Connector Type	Mounting Feature	Contact Material	Primary Material	Number of Positions	Contact Finish - Mating	Termination	Applications	Shell Material	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish
ITT Cannon, LLC D38999/20MA35PN	Male Pins Receptacle	Flange	Copper Alloy	Composite	6	Gold	Crimp	Aviation Marine Military	Composite	N	1.27 µm	50 µin	9	35	Environment Resistant	-65 ░C	200 °C	Electroless Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Male Pins Crimp
