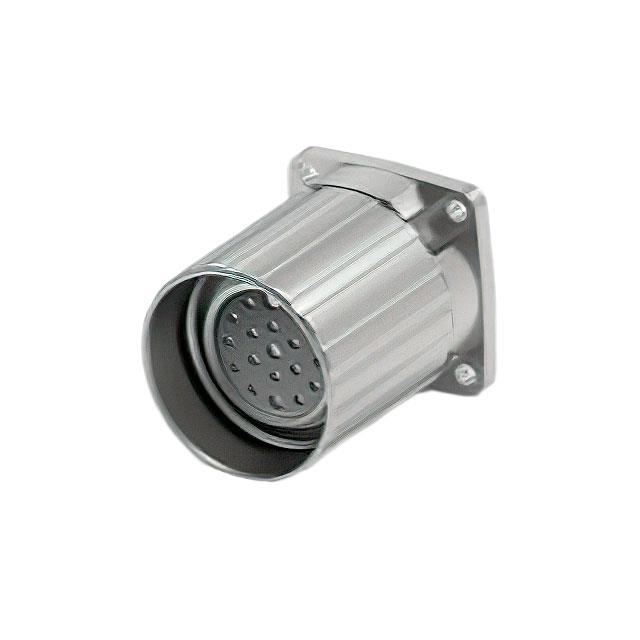

ADA151N00000101000

Active

TE Intercontec

CONN PLG HSG FMALE 6POS PNL MT

Search across all available documentation for this part.

Active

TE Intercontec

CONN PLG HSG FMALE 6POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	ADA151N00000101000

Connector Type	Plug Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Coupling Nut
Housing Color	Silver
Includes	1 Connector, 1 O-Ring
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shielding	Unshielded
Type	For Female Sockets

CONN PLG HSG FMALE 6POS PNL MT

Part	Housing Color	Number of Positions	Ingress Protection	Includes	Orientation	Shielding	Connector Type	Shell Material	Note	Mounting Feature	Shell Finish	Features	Insert Material	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Fastening Type	Type
TE Intercontec ADA151N00000101000	Silver	6	IP66/IP67	1 Connector, 1 O-Ring	Keyed	Unshielded	Plug Housing	Zinc Die Cast	Contacts Not Included	Flange	Nickel	Coupling Nut	Polybutylene Terephthalate (PBT)	Circular	-20 C	130 °C	UL94 V-0	Push-Twist	For Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Plug Housing Panel Mount Coupling Nut
