601.9261.009 - 601.9261.009

601.9261.009

Active

Altech Corporation

SWITCH SNAP ACT SPDT 1.5A 230V

Deep-Dive with AI

Search across all available documentation for this part.

601.9261.009 - 601.9261.009

601.9261.009

Active

Altech Corporation

SWITCH SNAP ACT SPDT 1.5A 230V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 424.97

Description

General part information

601.9261 Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	601.9261.009	601.9261 Series

	-	-
Circuit	SPDT	SPDT
Current Rating (Amps)	500 mA, 1.5 A	1.5 - 500 mA
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Switch Function	On-On	On-On
Termination Style	Connector	Connector
Voltage Rating - AC	230 V	230 V
Voltage Rating - DC	60 VDC	60 VDC

601.9261 Series

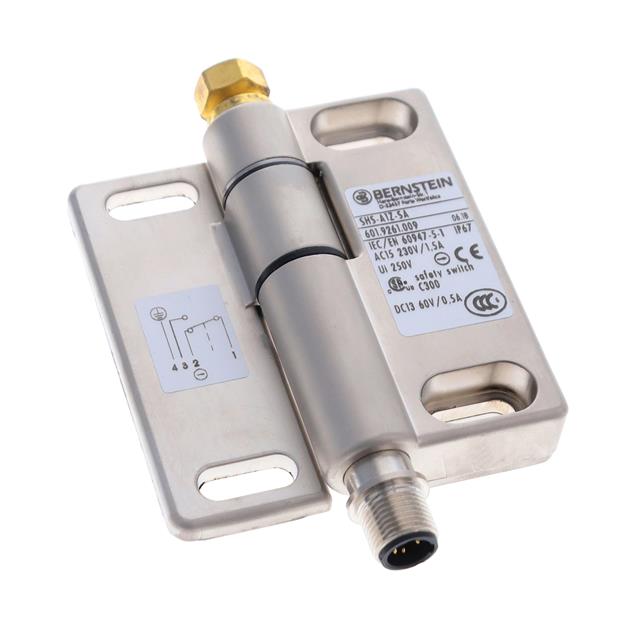

SWITCH SAFETY HINGE

Part	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Ingress Protection	Switch Function	Current Rating (Amps)	Voltage Rating - AC	Circuit	Termination Style	Mounting Type
Altech Corporation 601.9261.016
Altech Corporation 601.9261.009	1000000 Cycles	70 °C	-25 °C	60 VDC	IP67 - Dust Tight, Waterproof	On-On	1.5 A, 500 mA	230 V	SPDT	Connector	Chassis Mount
Altech Corporation 601.9261.017
Altech Corporation 601.9261.014
